Brand:Calmus
Type:Bag in Box Packaging Line
Application:Semi-Liquids Like Margarine Butter
Applicable Bags:Rolled Continuous Spoutless Bags
deliver goods:Within 90 days
Send inquiry

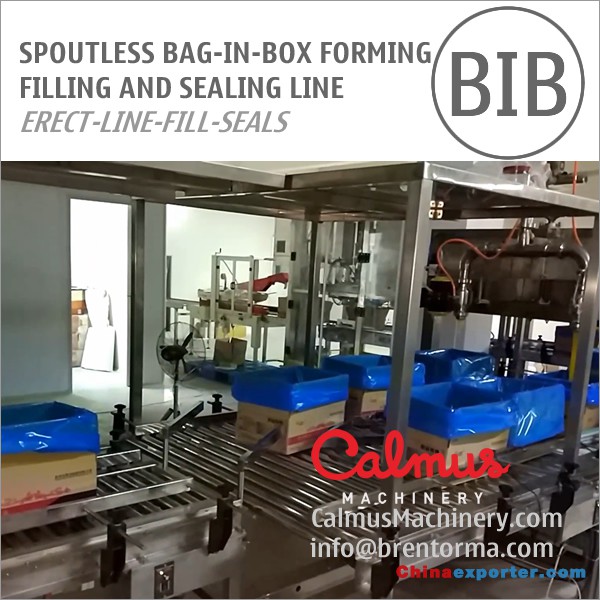

Fully-automatic Spoutless Bag in Box Line for Packaging Margarine or ButterIdeal bag in box line for packaging magarine or butter. It is a spoutless bag in box, different from a standard bag-in-box which is with a spout and fitment. The line fills the carton liner bag from its open top and then heat-seal the top.
This bag in box forming filling and sealing line is designed for packaging fluids like margarine, butter, cream or other pasty products with spoutless bags in boxes. Erect cartons and seal bottoms to form boxes, insert and line open-top bags in cartons, fill products, heat-seal bags and seal box top, all automatically.
The bag in box packaging line includes a carton erector, a carton lining machine (lining bags in erected cartons by one each), a weight filling machine, a liner bag sealer, a carton sealer and conveyors. The cartons can be sealed with tape or hot melt glue.
The carton lining machine inserts a poly bag in a box, opens and folds the bag top over the box top. The liner reduces labor and material costs, is simple to operate and easy to adjust. High efficiency and labor saving.
The liner bag sealer takes the folded bag top off the box top, then folds it inwards from sides, vacuumizes the bag (optional), heat-seals the bag top and then folds it in the box.
The product-contact parts in the filling machine are made of 316L stainless steel, acid-proof and corrosion-resistance.
Specifications:
Applicable cartons: L250-550*W200-400*H150-400mm
Applicable bags (width): 460-840mm
Capacity: max. 300 boxes/hour
We also have a bag in box line for packaging nuts or granules.
