Expanded metal Mesh Stainless Steel Grade SS 304 For Plastering Wall
Expanded Stainless Steel has many advantages over carbon expanded steel as it offers much better corrosion resistance and longer service life.
It can be supplied with a variety of openings:
1, Standard Rhombic Shaped
2, Heavy Type (Tortoise-shaped)
3, Flattended Type
4, Micron Opening
5, Special Types
Expanded stainless steel mesh is widely used as protection fences, screens for window of cars, basket handrails, battery netting, satellite aerials, reinforcement materials, filtration materials and other uses.

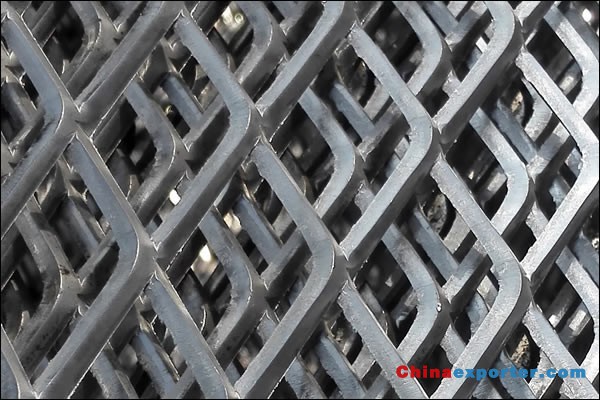

Stainless Steel Expanded Mesh
Expanded stainless steel(SUS304)
| Mesh size mm | Strand size mm | Weight kg/m2 |
Standard product size 1000*2000(mm) |
||
| SW | LW | T | W | Weight per sheet(kg) | |
| 12 | 30.5 | 1.2 | 1.5 | 2.38 | 4.76 |
| 12 | 30.5 | 1.5 | 2.0 | 3.97 | 7.94 |
| 12 | 30.5 | 2.0 | 3.0 | 7.92 | 15.9 |
| 22 | 50.8 | 1.5 | 2.0 | 2.16 | 4.32 |
| 22 | 50.8 | 2.0 | 2.0 | 2.6 | 5.2 |
| 22 | 50.8 | 2.5 | 3.0 | 5.41 | 10.8 |
| 22 | 50.8 | 3.0 | 3.0 | 5.75 | 11.5 |
| 34 | 76.2 | 2.0 | 2.5 | 2.33 | 4.66 |
| 34 | 76.2 | 3.0 | 3.5 | 4.9 | 9.80 |
| 34 | 76.2 | 4.0 | 4.3 | 7.55 | 15.1 |
| 34 | 76.2 | 4.5 | 5.0 | 10.5 | 21 |
| 36 | 101.6 | 4.0 | 5.0 | 8.81 | 17.6 |
| 36 | 101.6 | 4.5 | 7.0 | 14 | 28 |
| 36 | 101.6 | 5.0 | 7.0 | 16.5 | 33 |
| 36 | 101.6 | 6.0 | 7.0 | 18.5 | 37 |
| 34 | 135.4 | 4.0 | 5.0 | 9.33 | 18.7 |
| 34 | 135.4 | 4.5 | 5.0 | 10.5 | 21 |
| 34 | 135.4 | 5.0 | 6.0 | 14 | 28 |
| 34 | 135.4 | 6.0 | 7.0 | 19.6 |
39.2 |
