Overview

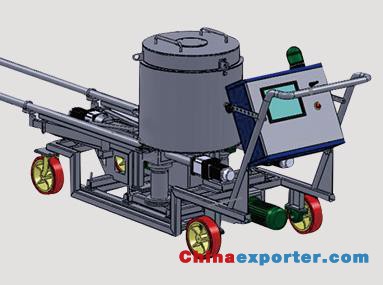

MAC-G320 automatic mold flux feeding system is a new generation product of automatic adding mold flux, which is independently developed by Wuhan CenterRise M&C Engineering Co., Ltd. According to different steel grades, casting speed, vibration and other process parameters, then the system can analyze and calculate the accurate mold flux addition amount through intelligent software. Then the system sends out signals to control the mold flux addition process and mold flux addition amount, and designs appropriate nozzles and propellers according to the fluidity of molten steel in the mold and the ductility of mold flux. After the system setting is completed, there is no manual intervention is required. It completely replaces the whole process of manual addition of mold flux, and realizes the automation of mold flux addition.
The technical parameter
Mold width: 500-2000mm
Mold thickness: 100-500mm
Type: screw conveying type mold flux feeding machine
Heating method: stirring electric heating
Arrangement location: on the pouring platform (with its own wheels to move)
Adding capacity: 0.5～7.5L/min, continuously adjustable feeding tube
Molding flux storage tank: ~125 L, with material level detection and alarm
Control mode: local/remote control, automatic /manual mode
Molding flux type: granular flux or powder flux
flux adding method: spiral swing adding flux
Casting speed interlock: yes
Mould size setting: yes
Signal transmission: DP/Industrial Ethernet
