Price:Unkonwn
Diameter:0.3-100mm
Diameter Tolerance:±0.005
Material:N-BK7
Mini Order:50
deliver goods:Within 3 days

Send inquiry

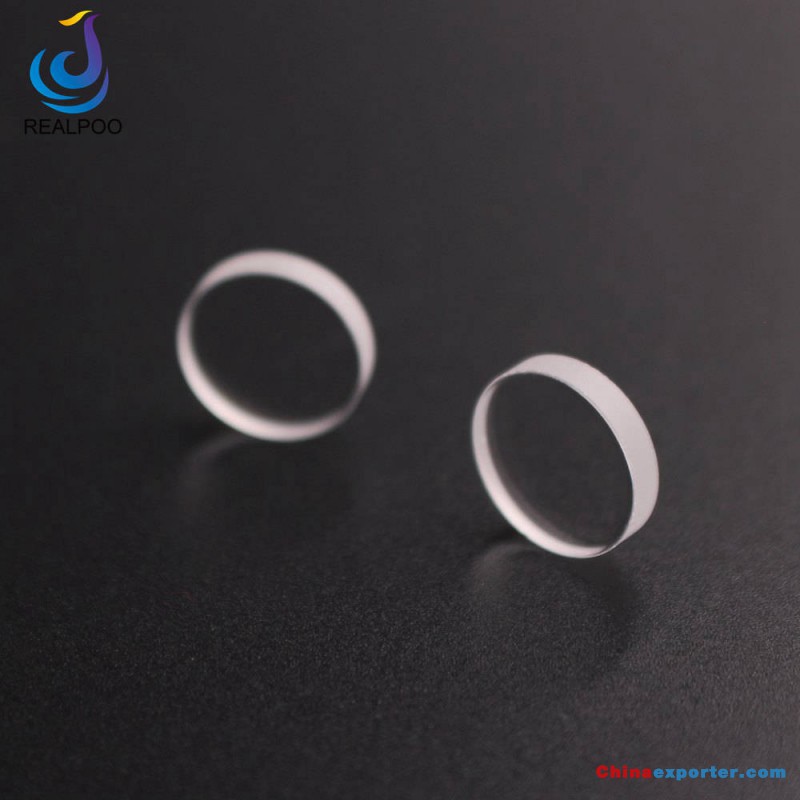

Sapphire Windows are manufactured from single crystal sapphire AI2O3, its advantage is extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis.

Specifications:

Material : Sapphire AI2O3
Diameter : 1mm ~ 300mm
Diameter Tolerance :+0.0/-0.1mm
Thickness Tolerance :+/-0.1mm
Surface Quality :40/20， 60/40
Clear Aperture :>90%
Bevel : Protective bevel as needed
Coating :Upon your request

Sapphire (molecular formula Al2O3) single crystal is an excellent multifunctional material. It has high temperature resistance, good thermal conductivity, high hardness, infrared transmission and good chemical stability. Widely used in many fields of industry, national defense and scientific research (such as high-temperature infrared windows, etc.). At the same time, it is also a widely-used single crystal substrate material. It is the preferred substrate for the current blue, violet, and white light emitting diode (LED) and blue laser (LD) industries, as well as an important superconducting thin film substrate.
