Diameter:12.5mm
Diameter Tolerance:±0.05
Focal Length:25mm
Mini Order:100
deliver goods:Within 30 days

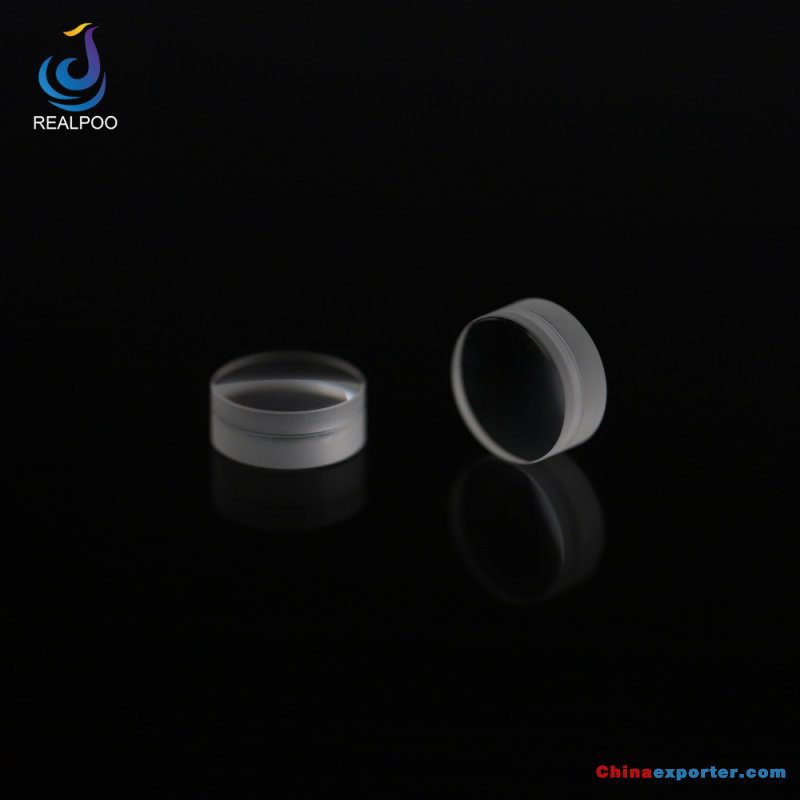

Realpoo Optics can manufacture the achromatic lens that the diameter is bigger than 50mm . Achromatic lens can be used as collimators, focusing lenses or light collectors. They are designed to eliminate chromatic and spherical aberrations and perform well for all paraxial imaging tasks. These lenses are coated with single layer antireflection coating to reduce surface losses in the visible regions. Achromatic lenses are widely used today in achromatic telescopes, microscopes, and photographic lenses.
Specification :
Material : N-BaF10 and N-SF10
Diameter :12.5mm
Diameter Tolerance : +0.0 , -0.025
Focal Length : 25mm
Center Thickness: 6.25mm
Center Thickness Tolerance : ±0.05
Surface Quality : 40-20 scratch and dig
Centration : ±1 arc minutes
Surface Figure : lambda/4 @ 632.8nm
Clear Aperture : >90% of diameter
Bevel : protective chamfer
Coating : AR 400-700nm
