Surface Quality:40/20
Diameter Tolerance:±0.05
Material:Optical Glass
Mini Order:100
deliver goods:Within 30 days

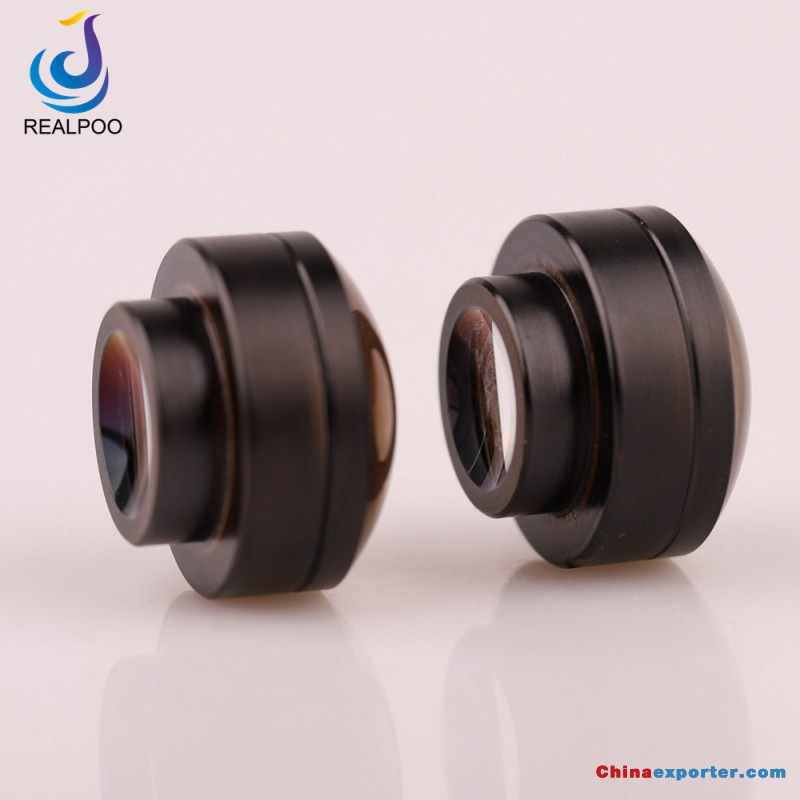

Realpoo Optics can offer edge blacken achromatic lens. Achromatic lens can be used as collimators, focusing lenses or light collectors. They are designed to eliminate chromatic and spherical aberrations and perform well for all paraxial imaging tasks. Achromatic lens is important optics in optical system. These lenses are coated with single layer antireflection coating to reduce surface losses in the visible regions. Achromatic lenses are widely used today in achromatic telescopes, microscopes, and photographic lenses.
Specification :
Material : Crown Glass and Flint Glass
Diameter Tolerance : +0.0 , -0.05
Center Thickness Tolerance : ±0.1
Surface Quality : 40-20 scratch and dig
Centration : ±1 arc minutes
Surface Figure : lambda/4 @ 632.8nm
Clear Aperture : >90% of diameter
Bevel : protective chamfer
Coating : Upon requirement
