Surface Quality:40/20
Diameter Tolerance:±0.1
Material:Optical Glass
Mini Order:50
deliver goods:Within 7 days
Send inquiry
G2 lens is the best choice for short ranges, as in an engraving machine. The G2 lens is a single lens enabling the maximum true power of the laser diode for rapid close-range burning and engraving. Advantage of G2 lens is 95% efficiency, reduces the beam aperture . Downsides Increase the beam divergence (thickness) and the beam profile.
Specifications:
Product Name: G2 lens
Lens Material : Single element ; Coated optical glass

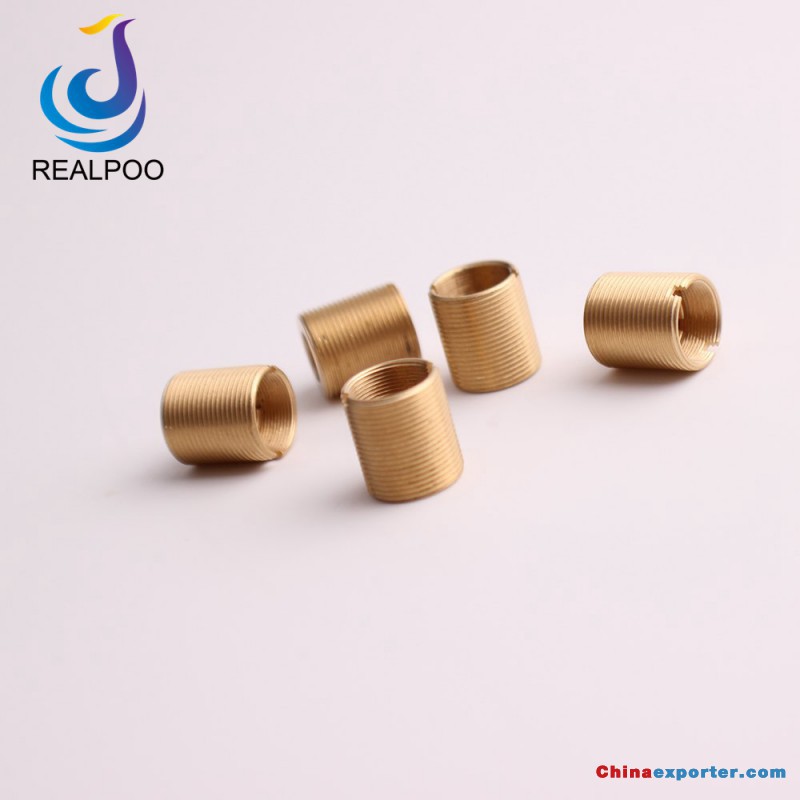

Lens Holder : 9mm x 0.5mm thread , 10mm length , brass
EFL ( Effective Focal Length): 4.02mm
CA (Clear Aperture) : 5.1mm
NA (Numerial Aperture) : 0.6mm
Coating : 400-700nm
