Brand:BaoCheng
型号:JZX-10M

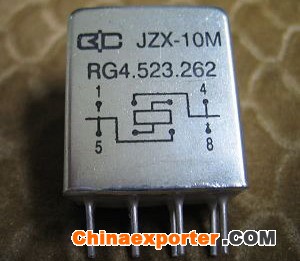

规格:JZX-10M Miniature Hermetically Sealed Relay
deliver goods:Within 60 days
Send inquiry
ENVIRONMENTAL CONDITIONS: Temperature Range: -55 ~ +85°C;
Relative Humidity: 98% at +40°C ;
Atmospheric Pressure: 86~106kPa, Low pressure 4.4kPa;
Shock: 490m/s2;
Vibration: 10~500Hz,98m/s2;
Liner Acceleration: 245 m/s2.
TECHNICAL DATA:
Contact Arrangement: 2 Form C (DPDT);
Coil Voltage: 6~60VDC,6.5mA~24mA;
Coil Dissipation: 0.16~0.57W;
Insulation Resistance: 1000MW;
Dielectric Withstanding Voltage (RMS/50Hz): 500~1000Vr.m.s. ;
ContactRresistance: 0.05W;
Operate Time: 6ms;
Release Time: 4ms;
Contact Ratings: 2A28VDC Resistive,0.5A115VAC Resistive;
Electrical Life: 1 x10 5 Operations;
Leakage Rate: 1 x 10 0 Pa.cm3 /s;
Dimensions: 21 x 11 x 25 mm ;
Weight: 20g;
Approved by Standards: QZJ840617
