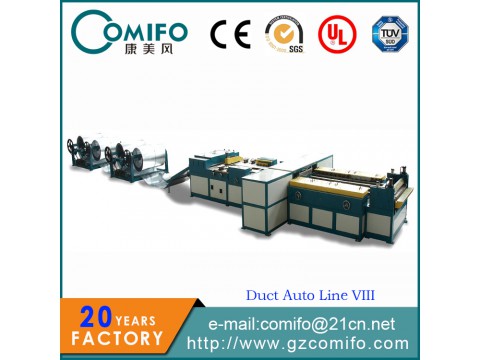

Auto duct line 8, duct machine, duct forming machine, Duct Production Line

Click image to view original image
Brand: COMIFO
Model: CAL8-1.2x1300
Weight: 5t
Dimensions: 5400*2300*1400mm
Price: 100000.00USD/set
Min.Order: 1 set
Supply 100 set
Delivery: Shipment within 30 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2019-08-13 11:29
Hits: 2868
Buy
Company Detail


Details

Features:
1. Modular design allows adding a section at a time
2. Two sets of twin-motor driven dual-decoilings, selectable coils stand by, maximum capacity of 5-ton per station (optional: up to 10-ton per station)
3. Pneumatic controlled straightener and beader
4. Punch center holes for cross-tie duct bracing
5. Duplex drive cleat forming rollers are available
6. Patented Automation pittsburgh lock former, forms pittsburgh lock and right angle, roll forming and shearing simultaneously, shorten working time, a perfect match to duct auto line
7. Duplex TDF flange former, forms TDF flange by double sides
8. Optimizes floor space by inline position of machines, guarantees high efficiency
9. Accurate PLC control unit, preset available profiles and folding style, notching size, punching size, cutting dimension on touchscreen



Model No.
Max Coil Width
Thickness Range Speed
Shearing Tolerance
Diagonal Tolerance
CAL8-1.2x1300
1300mm
0.5-1.2mm
0-18m/min
±0.5mm
±0.5mm
CAL8-1.2x1600
1600mm
0.5-1.2mm
0-18m/min
±0.5mm
±0.5mm



Stations: coil-straightening-beading-punching cross-tie holes-punching square-notching-duplex drive cleat forming-folding -shearing- automation pittsburgh lock forming-coil conveyer (optional) -duplex TDF flange forming -hydraulic folding



Work Flow:
