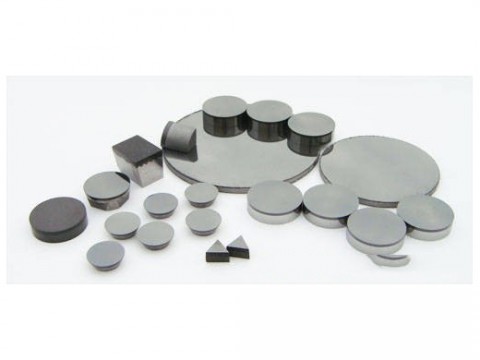

PCD cutting tool blanks are compound super-hard material of polycrystalline diamond layers and WC sintered under ultrahigh pressure and high temperature. It has the hardness and wear resistance of natural diamond and toughness of hard alloy. The surface of tools and processing work pieces made of such materials is highly polished and grinding processing operation is not required. Cutters have a long lifetime and high efficiency. It is an ideal and new-type tool material and can be widely applied in processing nonferrous metals and its alloy and non-metallic materials.
Standard models of PCD cutting tool blanks
|
Product number |
ΦD (mm) |
T (mm) |
|
|
|
R1003 |
10.00 ±0.03 |
3.53±0.1 |
|
R1301 |
13.30±0.03 |
1.60±0.1 |
|
|
R1303 |
13.30 ±0.03 |
3.53±0.1 |
|
|
R1601 |
16.00 ±0.03 |
1.60±0.1 |
|
|
R1603 |
16.00 ±0.03 |
3.53±0.1 |
|
|
R1901 |
19.05 ±0.05 |
1.60±0.1 |
|
|
R1903 |
19.05 ±0.05 |
3.53±0.1 |
