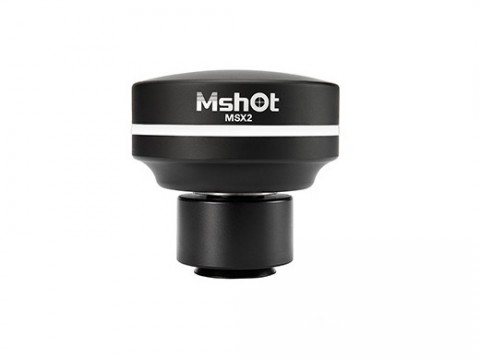

MSX2-H - 12MP sCMOS camera

What is sCMOS?


Unlike any conventional CCD or CMOS-based sensor to come before, Scientific CMOS (sCMOS) is a breakthrough technology based on new-generation CIS (CMOS Image Sensor) design. The multi-megapixel sensors offer a large field of view and high resolution, without compromising read noise, dynamic range or frame rate.


It makes sCMOS camera has equivalent clarity and view as CCD camera, while much faster speed and higher resolution at the same time. It is capable of simultaneously offering:

• Large field of view
• High resolution
• Rapid frame rates
• Extremely low noise
• Wide dynamic range

sCMOS MSX2 features:

• 12 Megapixels,  1 inch sensor.
• USB3.0 data port.
• 380nm~1100nm wide spectral response.
• 15fps at full resolution, max. 57fps with 3MP resolution.
• 10s long exposure time.
• 32X effective gain.
• 64MB cache.

Advantages:

• 1 inch large size sensor to offer more real image and fine details.
• 12 megapixels with 15fps frame rate offer smooth image view.
• Super speed by max. 57fps.
• Spectral response 380nm~1100nm, 10s exposure time for weak fluorescence.
• Excellent colour reproduction and clarity.
• 32X effective gain offers high light sensitivity, even fluorescence can get up to 15fps with 12 megapixels.
• 63MB cache save PC RAM, make sure camera work smoothly and stable, fit to dual camera function.

Benefits:

• Big sensor make sure more real size field of view.
• Super resolution provides high definition image with fine details.
• High frame rate offers fluent preview and operate under full resolution.
• Better color reproduction make user get better image result.
• Fit to almost all microscope imaging applications.

Parameters :
