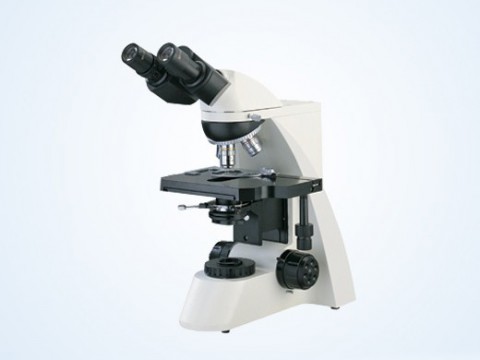

Click image to view original image
Features
- Infinity optical system.
- Binocular and trinocular head is optional.
- Equipped with wide field eyepieces, infinity plan achromatic objectives.
- Can upgrade to fluorescent functional.
- Can add simple polarizer, phase contrast and dark field.
- Halogen lamp and LED light source is optional.
- Excellent infinity optical system provides clear and bright observation.
- Trinocular tube supports microscope camera.
- Plan objective and wide field eyepieces offer a wide and flat of vision.
- Clear observation of micro-specimen under dark field.
- Can achieve fluorescence observation after upgrading.
- Get accurate information from the high clarity image.
- Offer upgrading choice for users, such as fluorescence, dark field, simple polarizing and simple phase contrast.
- Have a wide range of applications.
Parameters :
|
Eyepiece |
Wide field WF10,FN:20mm |
|
Objective |
Infinity plan achromatic objective |
|
PL 4X/0.10 |
|
|
PL 10/0.25 |
|
|
PL 40/0.65 (Spring) |
|
|
PL 100/1.25 (Spring, oil) |
|
|
Eyepiece tube |
Trinocular, Inclined 30°，Pupil distance：55-75mm |
|
Focus system |
Coaxial coarse and fine adjustment, with adjustment limit stopper, minimum graduation in fine movement: 2μm |
|
Nosepiece |
Quadruple (Fixed nosepiece with backward inclined) |
|
Stage |
Double layer mechanical (Size:210mm*140mm,moving range:75mm*50mm) |
|
Filter |
Blue filter,ground glass |
|
Condenser |
Abbe condenser NA.1.25 Rack & pinion adjustable |
|
Illumination system |
6V 20W Halogen lamp with brightness control with field diaphragm |
|
Camera adapter |
1X C-mount adapter |
|
Spare bulb |
6v 20w |
|
Power cord |
Standard three-plug |
ML30-U Biological Microscope Optional Accessories
|
Eyepiece |
Graduated eyepiece, WF10, FN=22mm, 0.1mm/Div |
|
Wide filed WF16X (Φ11mm) |
|
|
Eyepiece tube |
Binocular, Inclination of 30° |
|
Filter |
Green filter |
|
Yellow filter |
|
|
Objective |
Infinity plan achromatic objective20/0.40 |
|
Converter |
Quintuple (Fixed nosepiece with backward inclined) |
|
Camera adapter |
0.5x , 0.67x C-mount adapter |
|
Digital camera adapter |
CANON NIKON (F) OLYMPUS camera models and many other brands |
