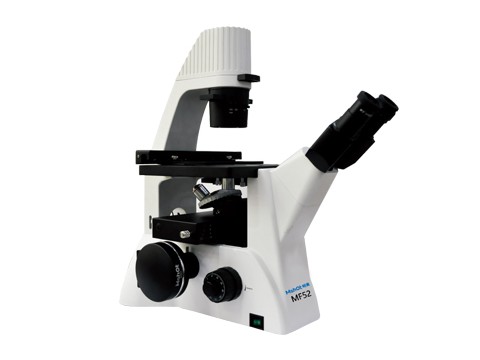

Inverted fluorescence microscope MF52 is constituted by inverted phase contrast microscope system and epi-fluorescence microscope system. The LED light source as epi fluorescence illumination is high efficiency and safety for routine laboratory work.
The swing-in and swing-out type condenser system can achieve doing non-contaminated cultured cells observation in the high culture dish or in the cylindrical flask. Its modularity design concept of epi-fluorescent micro system makes it can be easily and safety adjusted the illumination system and switched the fluorescent filter groups. MF52 is widely applicable to do micro observation of cells tissue and transparent liquid tissue as well as to do the fluorescence microscope observation of bio-pharmaceutical, medical testing and disease prevention,etc.
Features:
- Constituted of epifluorescence illumination and inverted biological microscope.
- High efficiency LED lamp for fluorescence.
- Adopt excellent infinity optical system.
- Equipped with long working distance plan objectives and wide field eyepieces.
- Phase contrast objectives 10X, 20X.
- Consist of blue, green and UV filter cube.
- Transmission illumination use white LED lamp with brightness continously adjustable
Advantages:
- Excellent infinity optical system offer high clarity images.
- Long working distance plan objectives and wide field eyepieces offer wide field of vision.
- Achieve multiple fluorescence observation,bright field and phase contrast observation.
- Modular design fluorescence attachment.
- LED light as fluorescence illumination, no waiting to heat and cooling, pre-adjusted well light central.
Benefit:
- User can get accurate information from the high clarity images.
- Get bright field, phase contrast and fluorescence by one microscope.
- LED fluorescence improve your routine laboratory work efficiency.
- Open to use, no waiting and cooling, no need adjust light central. Save time and smart to use.
- Small volum and light weight to take, save laboratory space.
- No mercury harmful and less UV harmful to human. Protect your health and increase working safety.
- No need to replace mercury lamp. Longer working life with better cost.
- Brighter fluorescence than mercury type.
Parameters :
| Eyepiece | Wide field WF10X(field number:Φ22mm) | |
| Centering telescope | ||
| Infinity plan achromatic objective | Objective | PLL 10X0.25 Work distance:4.3 mm |
| PLL 40X0.60 Work distance:3.5 mm | ||
| Phase Contrast Objective | PLL 10X0.25 PHP2 Work distance:4.3 mm | |
| PLL 20X0.40 PHP2 Work distance:8.0 mm | ||
| Observation tube | 45˚ inclined, interpupillary distance 53~75mm. | |
| Epi-fluorescence illumination system | 12V/2A cold LED light source, brightness continously adjustable | |
| 3W LED lamp | ||
| Slider transfer fluorescent filter group | ||
| UV filter group, excitation filter 330nm~380nm, emission filter 425nm | ||
| Blue filter group, excitation wavelength 460nm~490nm, emission filter 515nmnm | ||
| Green filter group, excitation wavelength 510nm~590nm, emission filter 590nm | ||
| Focus system | Coaxial coarse/fine focus, with tension adjustable and up stop, minimum division of fine focusing is 2μm. | |
| Nosepiece | Quintuple nosepiece | |
| Stage | Fixed stage overall size is 227mmX208mm | |
| Glass rotundity stage overall size is Ф118mm * 3mm, inner size is Ф68mm * 1mm | ||
| Mechanical moving device, moving range is 77mm (longitudinal)X114mm (transverse) | ||
| Culture dish holder 1 | Inside locating slot size: 86mm (W)X129.5mm (L), optional with a circular culture dish Ф87.5mm | |
| Culture dish holder 2 | Inside locating slot size: 34mm (W)X77.5mm (L), optional with a circular culture dish Ф68.5mm | |
| Culture dish holder 3 | Inside locating slot size:57mm (W)X82mm (L) | |
| Transmitted illumination system | Slider phase contrast condenser, working distance is 55mm | |
| White LED lamp with brightness continously adjustable | ||
| Green filter | ||
