Introduction

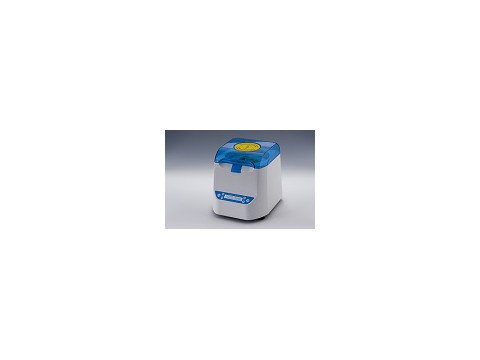

MPC2800 is designed for quick spins of samples in PCR plates. Primarily designed for use with 96 or 384 well plates and small volumes, it will accommodate skirted, non skirted and semi skirted styles.
Features:
u Easy to use, real-time display of all operating information.
u Countdown mode support.
u DC brushless motor, low noise, small interference, maintenance-free.
u When opening the cap will automatically stop running.
u Fast acceleration from standstill to maximum speed fully in just 10 sec.
u Braking time is short, from the highest speed to a complete standstill in just 4 sec.
Parameters
Project |
parameter |
Rotating speed |
2200~2800Rpm |
Timing range |
15Sec ~1Min59Sec |
Max(RCF) |
550g |
Acceleration time |
≤10Sec(0 to 2800Rpm) |
Brake time |
≤4Sec(2800 Rpm to 0) |
Lid Open Auto Stop |
YES |
Short Run |
YES |
Capacity |
2 PCR plates |
Power |
45W |
Voltage |
AC110~220V/50-60HZ |
Fuses |
250V/3A Ф5×20 |
Dimensions |
260240226mm |
Weight |
3.3Kg |
