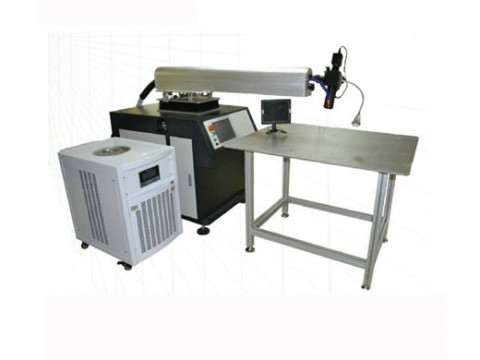

Click image to view original image
Features of channel letter laser welding machine
1. Fast working speed; professional jig ensures the focus fixed and makes welding easier without using CCD or microscope
2. Slight distortion and affect by heating.
3. Capable of partial heating process.
4. Able to weld with complex, profiled, or tiny letters.
5. Low noise and no pollution.
6. Ultrafine positioning rod makes the welding of tiny corner easier without changing spot position
7. New metal processing (laser welding) technology brings higher quality of end products. 10. By turning a knob, laser cavity can move backward and forward freely for the convenience of big size letters welding
8. Laser cavity can move left and right, up and down easily for more space when welding big letters
9.The adjustment of parameter setting is very easy; up to 10 sets of parameters can be memorized for your option
Application material of Channel letter laser welding machine
stainless steel,steel plate,iron plate and other metal and alloy;
Parameter of Channel letter laser welding machine
|
Moedl NO.
|
ZXW-C200W
|
ZXW-C400W
|
|
Laser source
|
Nd3+:YAG Rod
|
|
|
Rate power
|
200W
|
400W
|
|
Max. single-pulse energy
|
90J
|
120J
|
|
Total power
|
6KW
|
12KW
|
|
Power supply
|
380v 40A
|
380V 60A
|
|
50/60HZ compatible
|
50/60HZ compatible
|
|
|
Laser wavelength
|
1064nm
|
|
|
Facula diameter
|
0.3mm-3mm
|
|
|
Molten pool diameter
|
0.3mm-3mm
|
|
|
Pulse width
|
0.2ms-20ms
|
|
|
Pulse frequency
|
1-50HZ
|
|
|
Controlling system
|
Single-chip microprocessor
|
|
|
Operation interface
|
English
|
|
|
Observing system
|
CCD
|
|
|
Locating system
|
Infrared and locating rod
|
|
|
Working table scale
|
1000*750mm
|
|
|
3-axis itinerary
|
X=700mm,Y=150mm,Z=200mm
|
|
|
Dimensions
|
P1: 1160*610*1150mm
|
P1: 1260*710*1150mm
|
|
P2: 1420*870*1100mm
|
P2: 960+710*1150mm
|
|
|
P3: 1420*870*1100mm
|
||
|
Gross Weight
|
200KG
|
240KG
|
