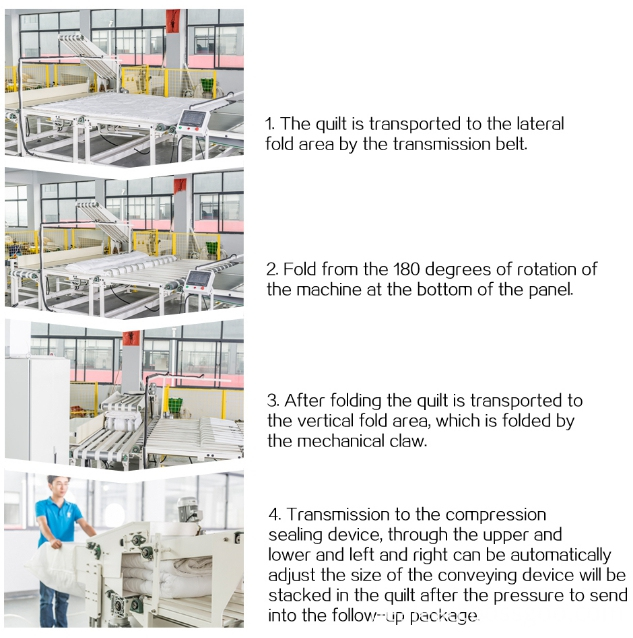

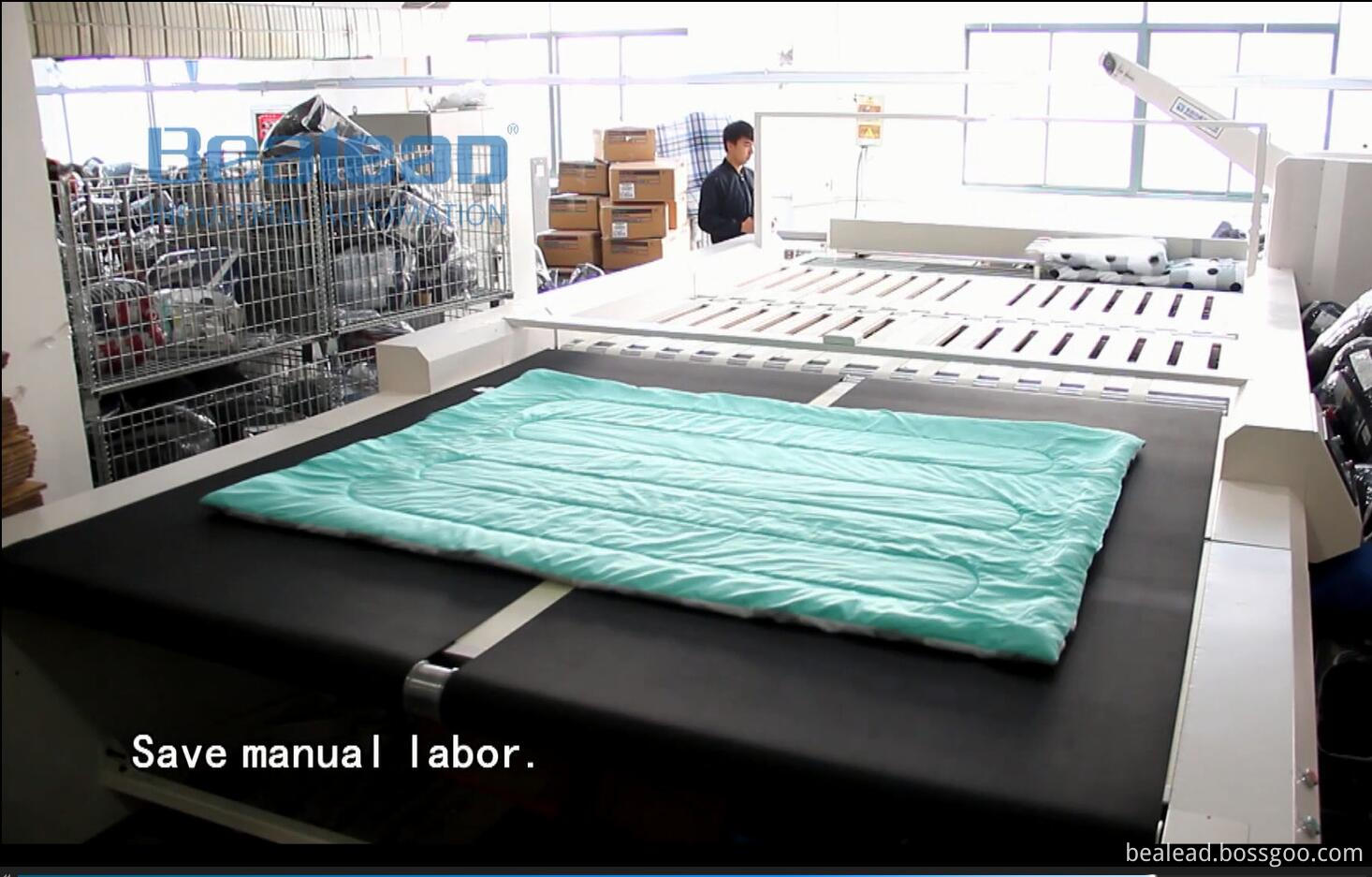

BL-F200 is a automatic folding machine for machine, it has many folding methods, can do three times' longitudinal folding and six times' transverse folding, compressing after transport to the end of conveyor belt for easy bagging.
Details:
Brand: Bealead
Model: BL-F200
Input Voltage: 220V/ 380V AC.50/ 60Hz
External Dimensions: 8m* 6m* 2.5m
Occupancy Area: 60 ㎡
Rated Power: 4kw
Input Air Pressure: 0.6- 0.8MPa
Gas Requirements: Dry, Oil free, Clean
Weight: 3000kg
Quilt Requirements: Down quilt, Fiber quilt
Max. Width of the folded quilt: 2.4m
Max. Length of the folded quilt: 2.5m
Width × thickness range after compression: 37cmX8m~15cm
Minimum size of packing bag: 60cmX60cm
Maximum size of packing bag: 75cmX75cm
Yield: 2400mm(length)× 2200mm(width) 200 bar/ hour
Company Information
ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.
Our company is R&D manufacturer of intelligent device for clothing production. We are in leading
position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.
We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.
Our Factory
Exhibitions
CE Certificate
