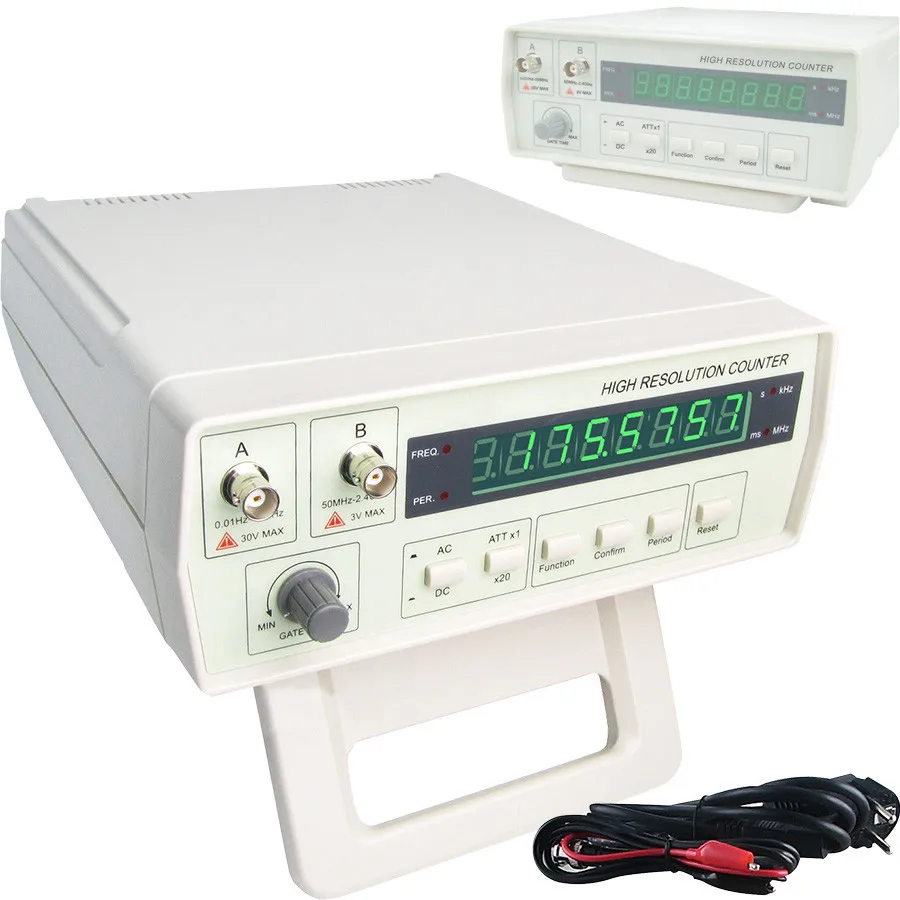

RF Meter is a frequency counter that measures signals over a wide range of 0.01 Hz to 2.4 GHz. Equipped with gate time that is continuously varying from 100ms to 10s and a maximum power consumption of only 5W.

All functions depend on a single CPU. It has a crystal-controlled temperature circuit that provides a constant compensation for temperature change , as a result it reduces the measurement errors typically caused by temperature drift.

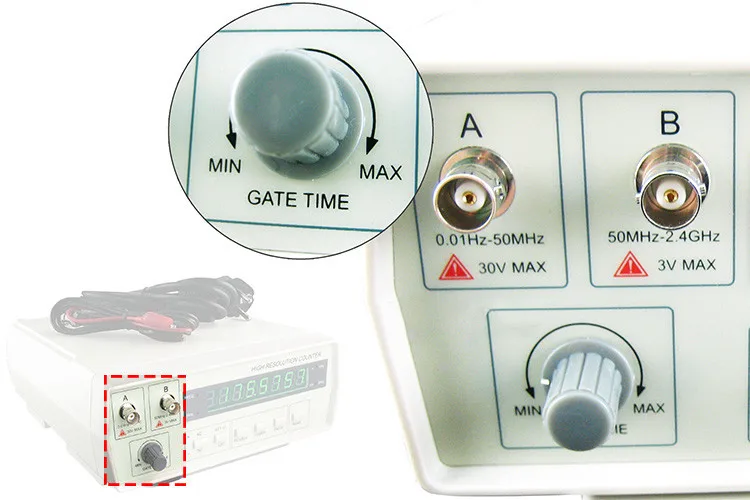

Its channel B (CH.B) input provides an attenuator (x1, x20) and an AC/DC coupling for a low-pass filter. This versatile equipment produces high performance stability and function at a low cost without compromising its quality.



With 3 steps function selection: work state, unit & 8-digit LED display

Frequency measurement from 0.01 Hz to 2.4 GHz

Cyclic measuring range from 0.5 ms to 10 s

With attenuation of 20 dB and input impedance of 1 MO

With frequency, period and equal-precision measurement

Quality Management System Conformity with ISO9001:2000

Maximum power consumption is only 5W

Safe to operate

Conforms with European Directive health & safety standards

Precision Radio Frequency Counter Specifications

8 digit LED display

3  step function selections

Channel  B (CH.B) input has an attenuator (x1, x20)

AC/DC  coupling for low-pass filter

All  functions depend on a single CPU

Crystal-controlled  temperature circuit

2  Input Channels : Channel A for 0.01 Hz to 50 MHz ;  Channel B for 50 MHz to 2.4 GHz



Channel A (0.01Hz ~ 50 MHz)

Frequency Range:

DC couple 0.01 Hz to 100 Hz

AC couple 100 Hz to 50 MHz

Sensitivity:

"AC" 100 Hz ~ 50 MHz ≤ 80m Vrms

"DC" 0.01 Hz ~ 1 Hz ≤ 500m Vp-p , 1 Hz ~ 100 Hz ≤ 80m Vrms

Input impedance: 1 MΩ

Channel B (50 MHz ~ 2.4 GHz)

Frequency Range: 50 MHz ~ 2.4 GHz

Sensitivity:

50 MHz ~ 1.2 GHz ≤ 80m Vrms

1.2 GHz ~ 2.4 GHz > 80m Vrms

Coupling : AC only
