What is sCMOS?
Unlike any conventional CCD or CMOS-based sensor to come before, Scientific CMOS (sCMOS) is a breakthrough technology based on new-generation CIS (CMOS Image Sensor) design. The multi-megapixel sensors offer a large field of view and high resolution, without compromising read noise, dynamic range or frame rate.
It makes sCMOS camera has equivalent clarity and view as CCD camera, while much faster speed and higher resolution at the same time. It is capable of simultaneously offering:
- Large field of view
- High resolution
- Rapid frame rates
- Extremely low noise
- Wide dynamic range

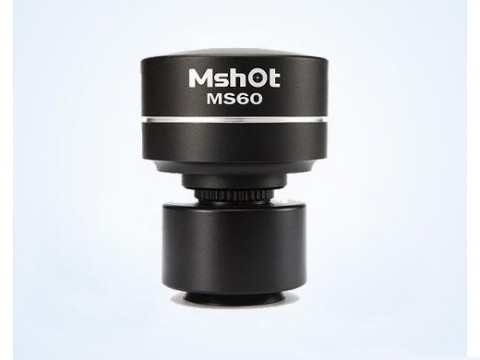

MS60 sCMOS Features:
- 1/1.8"high quality sensor .
- 6.3 megapixels ,effective 3072H×2048V
- USB3.0 data port
- High frame rate 30fps under full resolution.
- Spectral response 380nm ～ 650nm
- Built-in 64MB image cache.
- Fit to DirectShow / TWAIN
- Support Windows XP 32Bit；Windows 7/8/10 32/64Bit
MS60 sCMOS Advantages:
- Scientific level sensor to provide high clarity images.
- Bigger size sensor offers wider field of view and brightness.
- USB3.0 data port to achieve high speed transmission.
- High frame rate 30fps under full resolution offers smooth and fast preview.
- Wider spectral response range fit to weak light environment.
- Built-in 64MB image cache provides stable and safety using.
- Excellent color reproduction and high clarity.
- Well compatible software.
MS60 sCMOS Benefits:
- User can enjoy high clarity images in true color.
- See more sample area at one time with big sensor size.
- Rapid frame rate save working time.
- Fit to most bright field and dark field application, from biological to industry line.
- Free use with professional MSHOT microscope imaging software.
- Compatible use with latest laptop in USB3.0 and Windows 8/10 OS.
- SDK is available if secondary development is required.
|
Item |
MS60 |
|
Effective pixels |
6.3 megapixels |
|
resolution |
3072*2048 |
|
Sensor size |
1/1.8 inches |
|
Pixel size |
2.4 um*2.4 um |
|
frame rate |
30FPS：3072*2048 |
|
Exposure time |
100us ～ 16s |
|
Effective gain |
1～8X |
|
Spectral response |
380nm ～ 650nm |
|
Scanning mode |
Progress scan / continuous output |
|
Trigger mode |
Soft trigger |
|
Shutter |
Electronic shutter |
|
A / D conversion |
12Bit |
|
Exposure |
Manual/Auto/Area exposure |
|
White balance |
Manual/One push/Area |
|
Image format |
TIF,BMP,JPG |
|
Image Cache |
64MB |
|
Soft ware Interface |
DirectShow / TWAIN |
|
Operating system |
Windows XP 32Bit, Windows 7/8/10 32/64Bit |
|
Data interface |
USB3.0 5Gbps B type interface |
|
Power supply |
USB 5Vpower supply |
|
Operating environment |
Temp：0～40℃；humidity：10%～90%RH（No condensation） |
|
Size |
76mm*76mm*62mm |
