Double column Vertical turret lathe sale

Double column Vertical turret lathe sale

Technical specification of Double column Vertical turret lathe sale C5225

1 Maximum turning diameter 2500mm

2 Maximum height of workpiece 1600/2000/2200/2500/3000 mm

3 Maximum weight of workpiece 10/20 t

4 Table diameter 2250 mm

5 Speed change of table 2~63 r/min

6 Maximum torque of table 63 KN/min

7 Vertical travel of tool post 1000/1250 mm

8 Horizontal travel of tool post 1400 mm

9 Rotation range of tool post ±30° Degree

10 Power of main motor 55 kw

11 Machine weight (about) 32~38 t

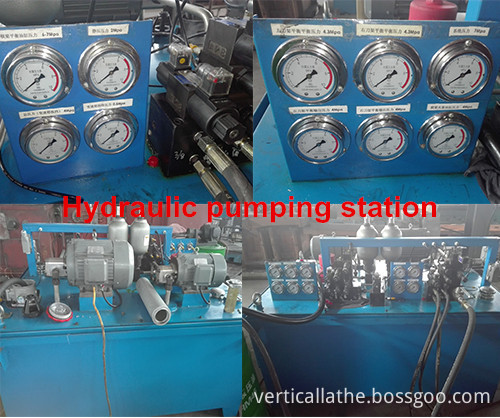

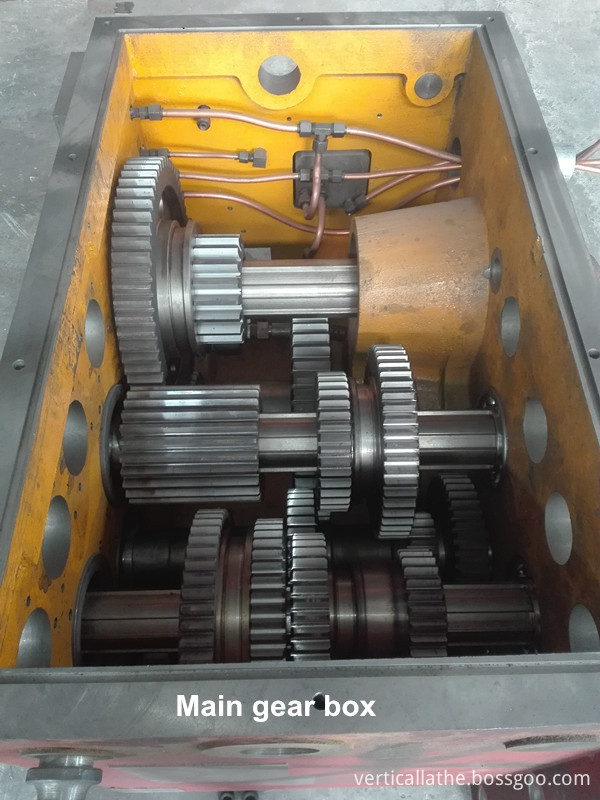

Photo of Double column Vertical turret lathe sale

Recommend other Vertical turret lathe sale
