CNC vertical borer lathe machine

CNC vertical borer lathe machine is suitable for internal and external turning/taping, facing, slotting, threading, contour surface turning (CNC machine) etc.

Feature of CNC vertical borer lathe machine

1 The spindle drive adopts servo motors through 2 steps speed change unit to make work table realize step-less speed regulation.

2  Work table spindle adopts short spindle & constant flow hydrostatic guide-way to keep high centering accuracy, high rotating accuracy, big loading capacity & small deformation.

Technical specification of CNC vertical borer lathe machine C5263

1 Maximum turning diameter 6300 mm

2 Maximum Height of workpiece 3150/3650/4150 mm

3 Maximum Weight of workpiece 50/80/100 t

4 Table diameter 4500/5750 mm

5 Speed range of table 0.5-50r/min

6 Maximum torque 1 60KN/min

7 Vertical Travel of tool post 1600 mm

8 Horizontal travel of tool post 3415 mm

9 Rotation angle of tool post -15°-±30°

10 Power of main motor 75kw

11 Overall dimensions(L×W×H) 12230×6800×6800 mm

12230×6800×7300 mm

12230×6800×7800 mm

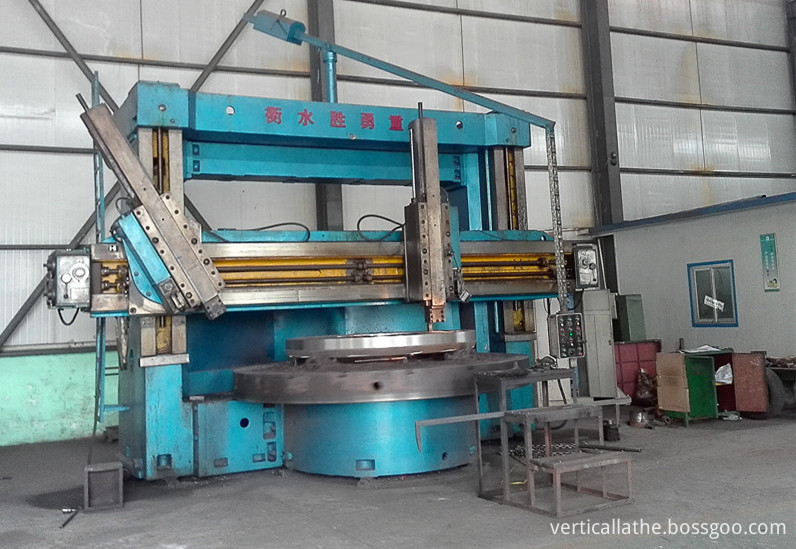

Photo of CNC Vertical Borer lathe machine

Recommend CNC Vertical Borer lathe machine
