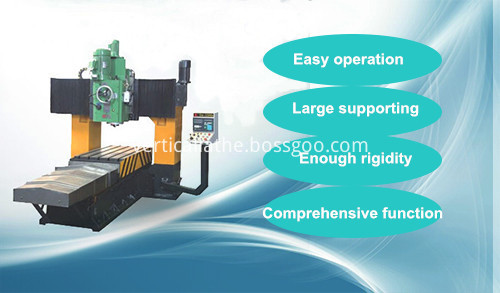

Product name :Plano milling machine X2120
Features of Plano milling machine
The machine is of high effeciency and exercise. Less consumption, beautiful modelling.
Plano milling machine can satisfy the large casting,steel parts boring and milling,drilling etc multiple operation process. It is also widely used in the machining of plane/end face/inclined plane/T slot/ combined guide-way of large/medium/small machine parts.
Plano milling machine model: X2120 X2125 X2130 X2140
Technical specification of Plano milling machine X2120
Maximum workpiece size: Long 3500
Maximum workpiece size: Width 2100mm
Maximum workpiece size: Height 1400mm
Table speed 30-1500mm/min
Number of milling head 2
Power of Milling head 5.5kw/7.5kw
Number of Side head 1
Power of Side head 5.5kw
Beam lifting speed 570mm/Minute
Machine maximum volume: Long 7000mm
Machine maximum volume: Width 4400mm
Machine maximum volume: Height 3700mm
Machine weight 39T
similar product

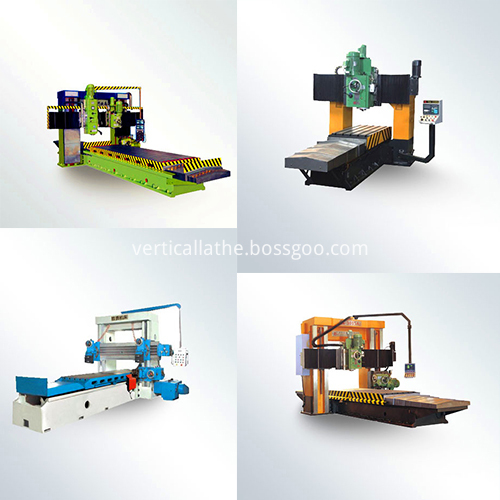

Plano Milling Machine
