Gantry Type Milling Machines for sale

Gantry Type Milling Machines for sale



























Technical specification of Gantry Type Milling Machines for sale X2120

Maximum workpiece size: Long 3500

Maximum workpiece size: Width 2100mm

Maximum workpiece size: Height 1400mm

Table speed 30-1500mm/min

Number of milling head 2

Power of Milling head 5.5kw/7.5kw

Number of Side head 1

Power of Side head 5.5kw

Beam lifting speed 570mm/Minute

Machine maximum volume: Long 7000mm

Machine maximum volume: Width 4400mm

Machine maximum volume: Height 3700mm

Machine weight 39T

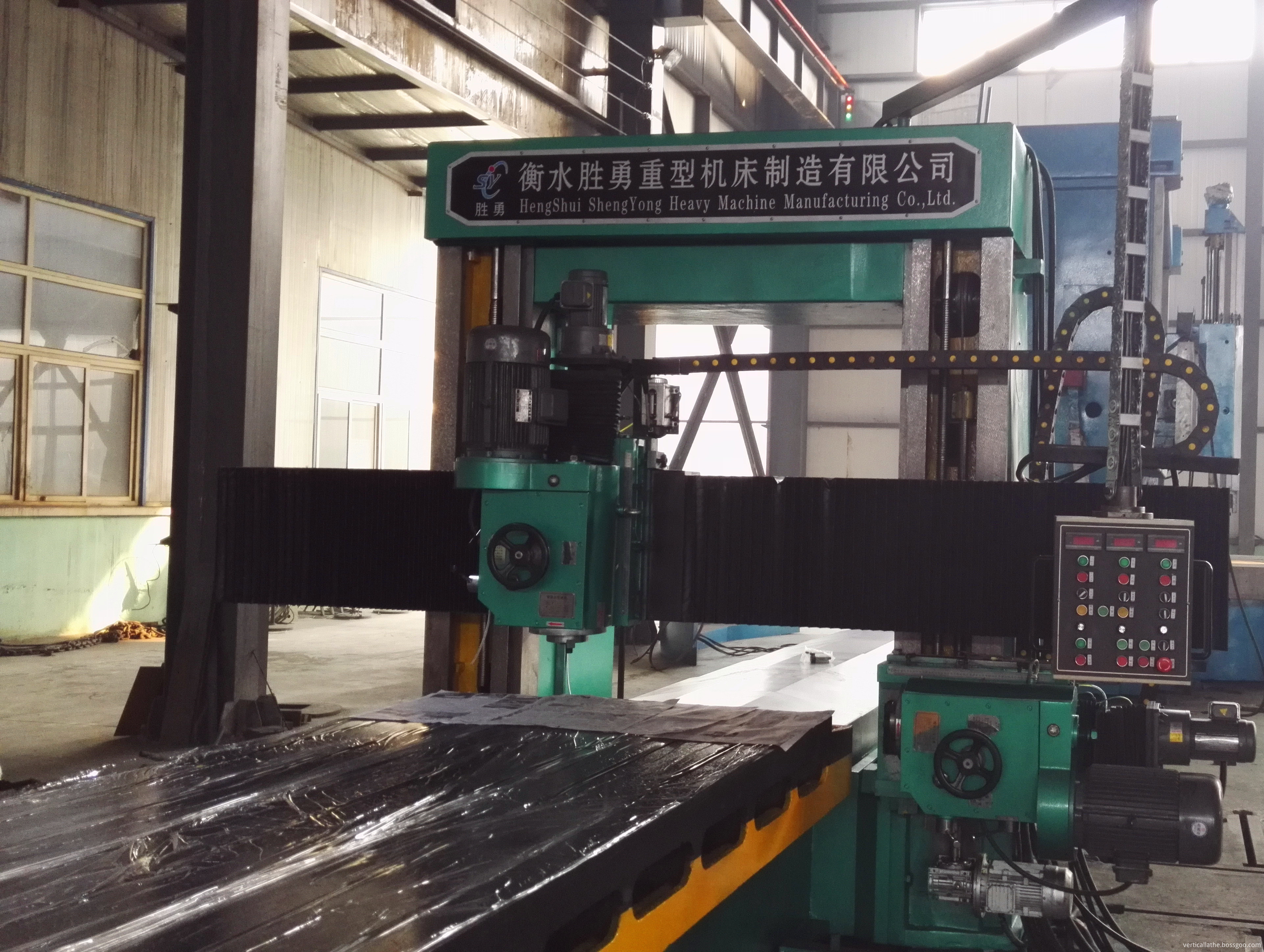

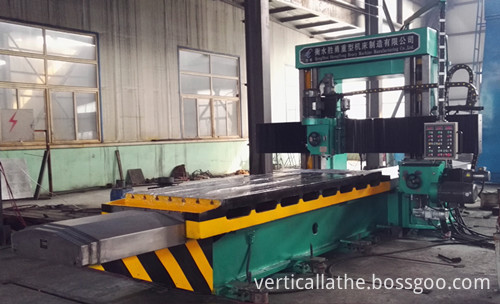

Photo of Gantry Type Milling Machines for sale
