Metal cold roll forming machine design

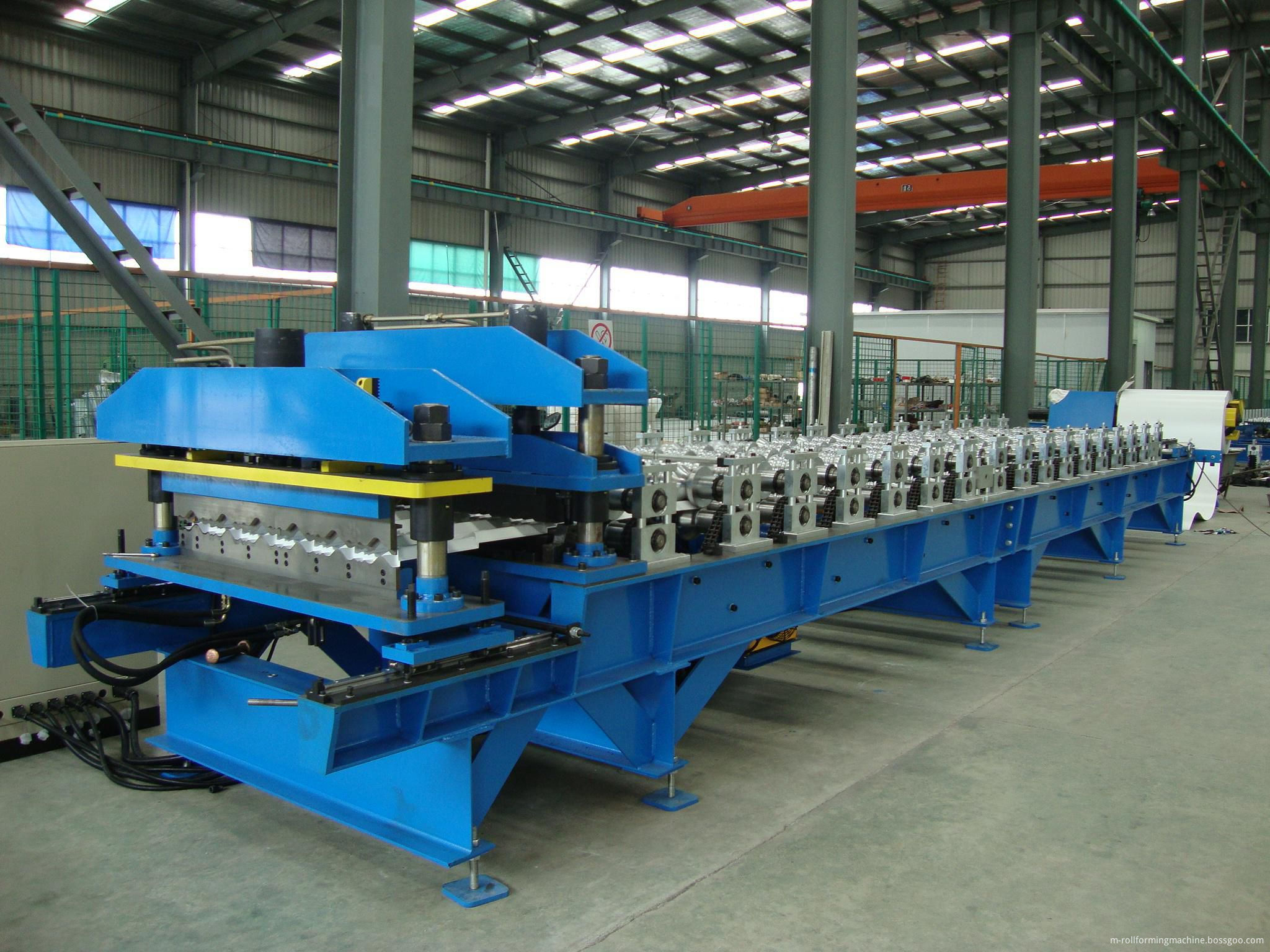

metal cold roll forming machine design is mainly used in the production of colored steel sheets. The Roof tiles making machine is artistically made and transmits smoothly at a low noise. It is a kind of very welcomed modern building material with better anti-press and anti-bending performance, and is widely used in the building of garden like factories, civil-construction and mansions, etc. Its length is set according to customer`s requirements and transportation situation. Its color is selected from the color code of the steel factory.

metal cold roll forming machine design Main Technical Parameter(actual parameter is according to the customers' requiremnents)

1)Suitable material colored steel sheet
         Width     1000mm
    Thickness   0.5-0.6mm
 Yield strength     230-300Mpa
        Coil weight    5T

2) Production Speed       3-4m/min        According to actual design
3) Roller Material       No.45 steel     with hard chromized treatment
4) Power source          380V/3PH/50HZ
Total power          about 8kw  According to actual design
5) Machinery dimension    (See the following layout)
metal cold roll forming machine design Work flow(it will be changed according to the actual design)

Decoiler----- Guiding device-----Roll forming unit-----Punching& Cutter-----Supporter

Roof tiles making machine Main Components

No Name Qty. Description
1 Decoiler
(capacity:5T)
1 set Simple manual decoiler

2 Main

machine Guiding device 1 set
Roll forming system 1 set Roller inner supporting structure :guide column
Punching &cutting device 1 set Cutting blade material: Cr12 quenched treatment
3 Supporter 1pc 1.For supporting the output panel,;
2.Dimension: 2*2m
4 PLC control system 1 set 1. Operation: screen+ button
2. MITSUBISH, Frequency
5 Hydraulic station 1 set 1.Famous Chinese brand
2.Will be displayed inside of the machine.
