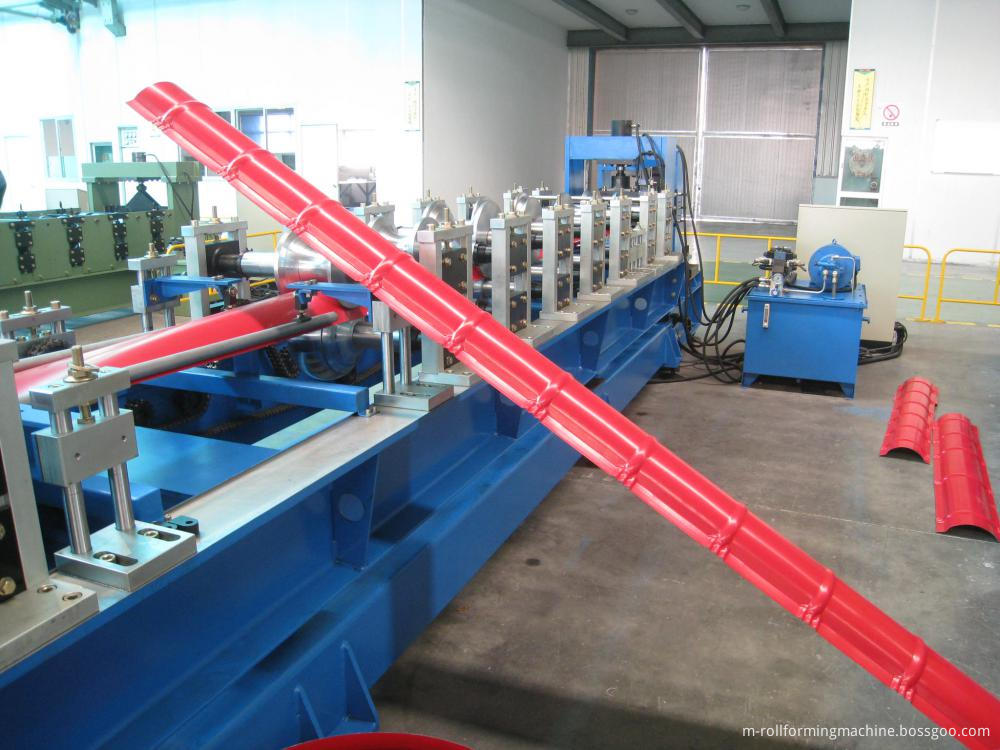

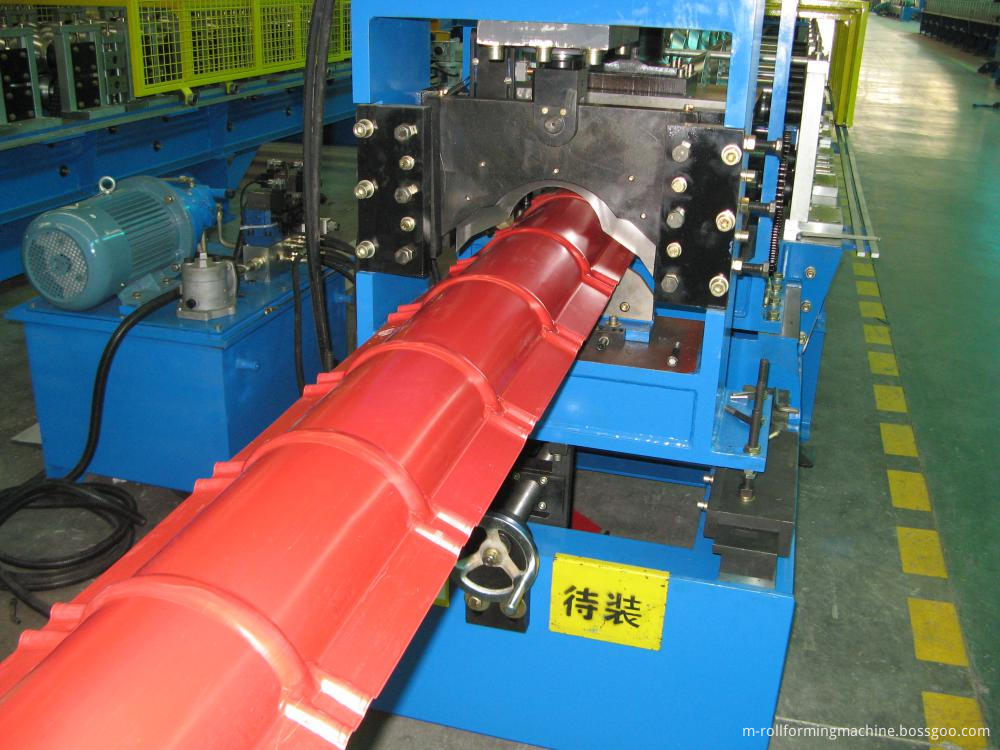

Ridge Cap Roller Forming Machine Description:
This Ridge Cap Roll Forming Machine is the special equipment for continuous rolling and cold-forming on steel sheet. Ridge cap roll forming machine adopts coiling steel sheet as the raw material, decoiling, continuous rolling and cold-forming, automatically cut to the size and specification which is required, and output the finished panels manually. The Ridge cap roll forming machine adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.

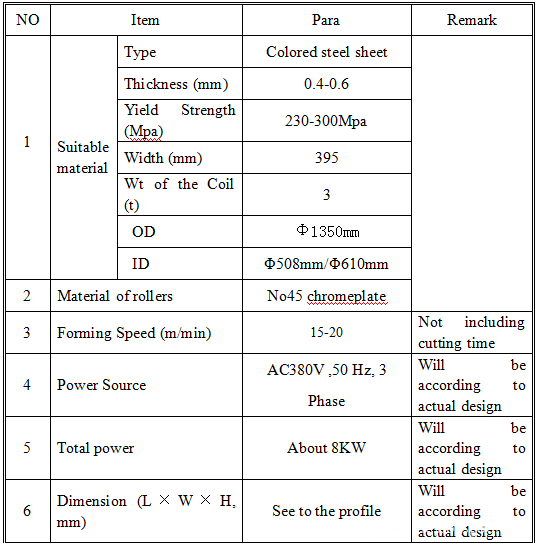

Technical Parameters for Ridge Cap Roller Forming Machine:
Working Process for Ridge Cap Roll Forming Machine:
Decoiling →Feeding Table →Roll forming →Punching→Cutting to length →Output the finished products
Components Parts of the Ridge Cap Roll Forming Machine:
Name Model/Name Quantity Technical Description
1.Decoiler system passive decoiler 1set Cantilevered type, passively decoiler
2.Main forming system Feeding Device 1set 1. Roller material:No.45 steel with surface hard chrome painted.
2. Roller inner supporting structure type: guide column
3. Planetary gear reducer motor driving, the back/forward rollers driven by chain, part of upper/lower rollers driven by gear
4. Cutting blade material Cr12 quenched treatment
Roll forming system 1set
Punching System 1set
Post-cutting device 1set
3. Output system Supporting Table 1set For supporting the finished panel and stacking together by the Manual
4. Hydraulic system 1set Separated hydraulic station
5. Electric control system 1set PLC Control, encoder automatic cutting in length
Operation stage: button
AC frequency for adjusting the speed
Packing and shipping about the Ridge cap roll forming machine
More about the Ridge cap roll forming machine
Finished products show about the ridge cap roll forming machine,pls check the download about the PDF below the main procucts introduce.
