Eps sandwich panel production machine line

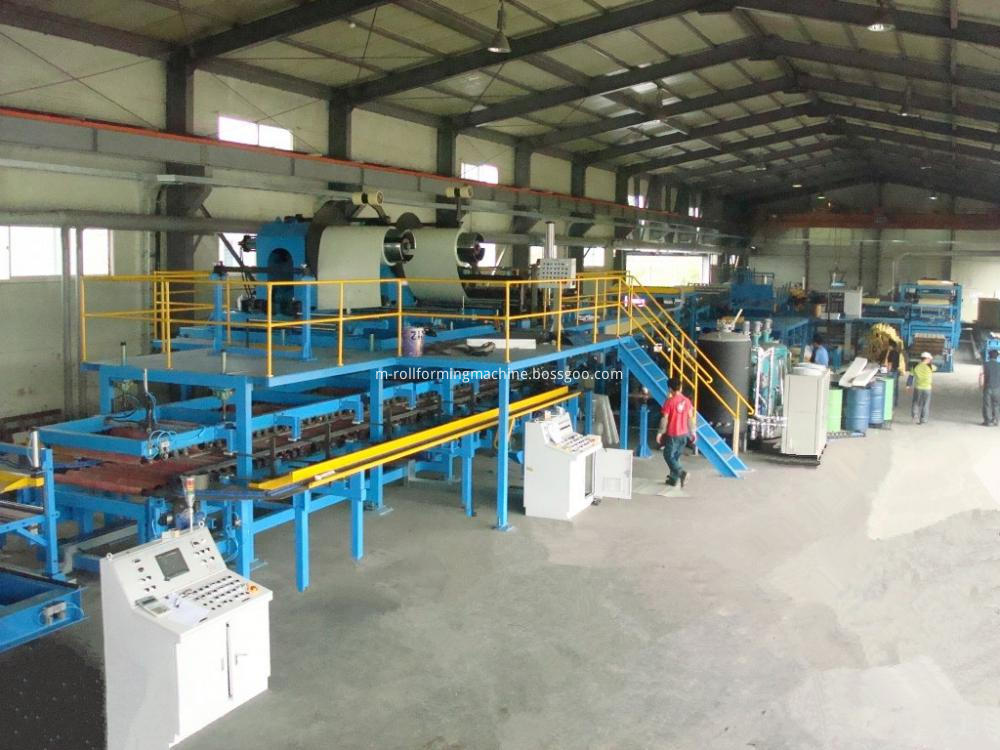

Eps sandwich panel production machine line Brief introduction
Eps sandwich panel production machine line l is an integrated production line consisting of a roll forming machine and a sandwich penal laminating system. The whole machine is under control of PLC.
The sandwich panel production machine line can produce three types of panels: flat wall sandwich panel, push-in sandwich panel and corrugated sandwich panel.
The suitable material is color steel sheet with thickness of 0.4mm-0.6mm, coil width 1200 mm. The yield strength is ≤235MPa. The inserted material is EPS and rock wool.
Eps sandwich panel production machine line Technical Parameters
Sandwich panel specification:
Length: cutting length≥2 m
Width: (see profile drawing)
Thickness: (see profile drawing)
Raw material specification:
Coil thickness: 0.4~0.6 mm (steel be flat without ups and downs,deformation and bending)
Coil stress: ≤235MPa
Coil max width: 1200 mm (tolerance±2mm)
Coil max weight: 5 T
Coil ID: Φ500 and Φ600 mm
Coil OD: Φ1000 mm
EPS material: density ≥18㎏/m3,unstraight of each side ≤1㎜/m,,curve ≤3㎜/m,surface be even,ineveness smaller than 1.5㎜/m,EPS material single piece length more than ≥3m.
Rockwool material:length more than 100mm,vertical lined,density ≥100㎏/m3 ,single piece length more than ≥3m
Material suitable shape:see profile drawing.(prepared by customer and according to the )
Material suitable width:minimum shall be 1/2mm of the finished panel width.
Eps sandwich panel production machine line specification:
Work line speed:1000-3000mm/min (frequency speed adjustment). Attention:depend on
glue brand, temperature and proficiency of operators.
Machine length: about 40 m
Working height: 1050 mm(panel output height)
Laminating effective length: 7.5 m
Control way: adopt industrial computer PLC
Total power: about 40 kw
Power: 380V/3phase/50 Hz
Control voltage: 24 V/110 V/220 V
Pneumatic: 0.7 Mpa (self prepared by factory)
Best working temperature: around 25℃

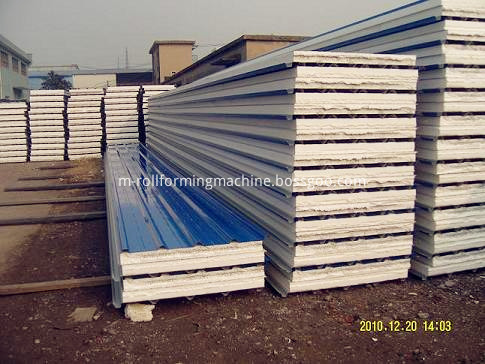

Finished products show

Packing and shipping about the Eps sandwich panel production machine line
