EPS/PU sandwich panel continuous production line

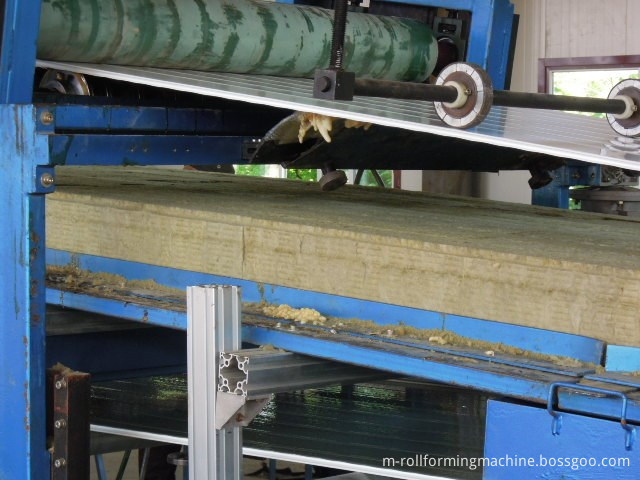

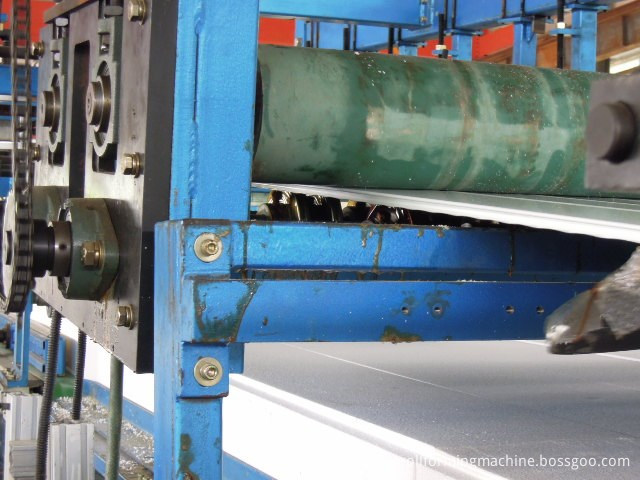

EPS/PU sandwich panel continuous production line Iaminator for corrugated sandwich panel mainly consists of a roll forming machine and a sandwich Panel laminating system. Through this line, corrugated sandwich panels can be produced directly, without the shortcoming that traditional corrugated sandwich panels have to be laminated manually after the forming of corrugated sheet. Moreover, both the roll forming machine and the laminating system can work independently. The roll forming machine of the line consists of feeding system, roll forming systm and cutting system, while the laminating system is made up of such equipment as decoiler, feeding, squeezing, heating, laminating, edge rolling, edge turn-over, groove-making, edge pruning, pneumatic device, automatic cutting and PLC. The whole machine possesses advanced working crafts.
The sandwich panels of this EPS/PU sandwich panel continuous production line are widely used as the roof and wall of factory, warehouse, garage, exhibition center, cinema, theatre, gymnasium, civil construction, stadium, cold storage, etc.

EPS/PU sandwich panel continuous production line Technical parameters

1. Size: 42000mm x 3600mm x3300mm (Length xWidth x Height)

2. Controlling system: PLC

3. Total power (including heating): about 40kw

4. Working speed: 1000~3000mm/min

5. Suitable working temperature: about 25

6. Density of EPS: >18kg/m

7. Suitable material for production: 1000~1200mm (0.5~0.6mm)

Finished products about the Continuous polyurethane sandwich panel machine,pls check the download.
