Automatic Electric Water Pump Float Switch DC Bilge Pump Switch Flow Sensor
|

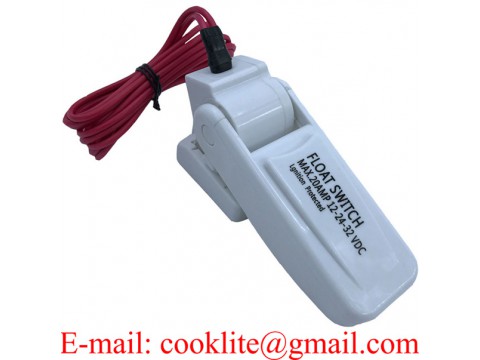

Level Sensor Float Switch For Bilge Pump | |
| Specifications | 12/24V/32V Float Switch | |
| Body Materials | Heavy duty Nylon housing | |
| Voltage ( V ) | 12/24V | |
| Max Amps | 20.0A(12V)/10.0A(24V) | |
| Wire Length | 1.0M | |
| Wire Gauge Size | 18AWG | |
| Overall Size | 13.5 x 19 x8cm | |
| Weight/Pack | 0.16/0.18KGS | |
| Packing | 48SET/CTN | |
| Turns pump on when water level reaches 2″(51mm) | ||
| Turns pump off when water level reaches 3/4″(19mm) | ||
| Suitable for 12V-32V bilge pumps,with a maximum of 20 Amps | ||
|
|
12V/24V 600 GPH Marine Automatic Bilge Pump | |
| Specifications | GPH600 - 12V/24V | |
| Flow Rate ( GPH/HR ) | 600GPH | |
| Voltage ( V ) | 12V/24V | |
| Current ( A ) | 3.5A/2.5A | |
| Lift ( M ) | 3M/3M | |
| Cable Length ( M ) | 1M/1M | |
| Outlet Dia | 19MM/19MM | |
| Weight/Box | 0.45/0.55KGS | |
| Packing | 20SET/CTN | |
| Boat Marine Automatic Submersible Bilge Pump 12V/24V 750GPH | ||
| Specifications | GPH750 - 12V/24V | |
| Flow Rate ( GPH/HR ) | 750GPH | |
| Voltage ( V ) | 12V/24V | |
| Current ( A ) | 5.5A/3.5A | |
| Lift ( M ) | 3M/3M | |
| Cable Length ( M ) | 1M/1M | |
| Outlet Dia | 19MM/19MM | |
| Weight/Box | 0.45/0.55KGS | |
| Packing | 20SET/CTN | |
|
|
Submersible Marine Automatic Bilge Pump with Float 1100GPH | |
| Specifications | GPH1100 - 12V/24V | |
| Flow Rate ( GPH/HR ) | 1100GPH | |
| Voltage ( V ) | 12V/24V | |
| Current ( A ) | 8.5A/5.0A | |
| Lift ( M ) | 4M/4M | |
| Cable Length ( M ) | 1M/1M | |
| Outlet Dia | 29MM/29MM | |
| Weight/Box | 0.45/0.55KGS | |
| Packing | 20SET/CTN | |
