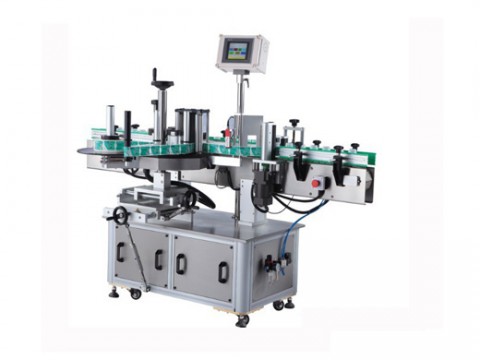

Click image to view original image
1 , This labeler suitable for vertical round shape bottle ,
2 ,It adopt PLC and touch screen human-machine operation interface .
3 , It can be adjusted according to different round bottle ,label .It is widely used on various types of glass bottle and plastic bottles for foods, beverage ,medical , cosmetic product.
4 , Bottle separator device can meet Synchronization sponge wheel stepless speed regulation = through bottle separator device, it can set bottle distance flexible.
Technical Parameters
|
Production speed |
45m/min |
|
Labeling accuracy |
±1mm |
|
Label max width |
190mm |
|
Bottle diameter |
30-100mm |
|
Label inner diameter |
76.2mm |
|
Label outer diameter |
Max330mm |
|
Outline size |
L2000×W700×1400mm |
|
Air source |
4-6KG 30L/MIn |
|
Using power |
220V 50HZ 1200W |
Product Characteristic
1 , The production quantities can be controled between 0-2500BS/Hours.Flexible set.
2 , The machine adopts the special structure of air driving and labeling rollers with high labeling accuracy.
3 , The machine is particularly applicable to circular label for big round bottles,high repeat accuracy,without air bladder,with special design,no need the structure of separate bottle it makes the system easier,higher efficiency.
4 , The range of labels is extended because of hign-power servo motor.Solves the common problem of the insufficient strength.
5 , The machine adopts our company patent technology.The inaccurate labeling is eliminated largely because of the structure of three rollers capable of locating labeling position,automatically.
6 , The machine just can label round bottle products,Plastic,Glass and others material,chosen to label one piece or two pieces,and it can label the washing hand liquid bottles in front and back at the same time.
7 , The advanced kind human interface system,on-line helping system,really human-machine
communicating,it is easy to operate so the worker can operate the machine in several hours.
