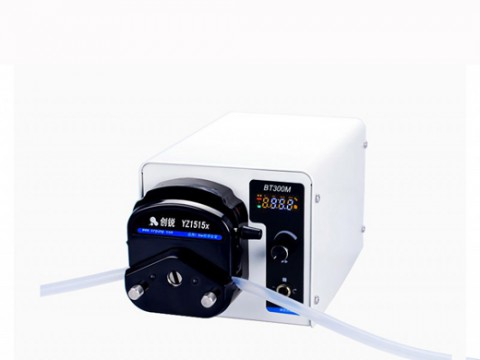

Click image to view original image
Quick Information
- Brand Name:Chuang Rui
- Place of Origin:China
- Standard or Nonstandard :Standard
- Speed resolution :0.1rpm
- Display :four LED display
- Power Consumption :＜50W
- IP rating :IP31
- Price condition :FOB
Description
Product Description:
M series can be installed by YZ1515x,YZ2515x,DG-1 and DG-2 four kinds of pump heads.Flow speeds can be adjusted by hand through switching knobs, instead of the traditional way of membrane keypad, which reduces obviously the failure rate, or by automatic control through the external controller interface, with three available modes: 0-5V, 0-10V and 4-20mA. Memory function is also available in the product in case of power off. Besides, switching knobs are designed clearly so that it is easy to operate for customers.
Functions and features:
1.Can be run with several pump heads :YZ1515x /YZ2515x/DG series etc
3.Long life time,easy to operate with switch knob. with high precision, suitable for high accuracy liquid transfer
4.With full speed button ,can fill or empty the tube rapidly
5.With Memory function. To avoid suddenly power off cause data lost .
6.With DB15 interface to reach external control :speed .start /stop. direction
7.With RS485 communication interface,support MODBUS communication protocol.The protocol can be customized depend on your requirement......
M Specifications:
Speed:
BT100M 0.1 to 100.0 rpm, reversible
BT300M 0.1 to 300.0 rpm, reversible
BT600M 0.1 to 600.0 rpm, reversible
Flow range：0.0015——2280ml/min/per channel
Speed resolution:：0.1rpm
Display:： four LED display
Communication interface:： RS485
External Control: Start/stop and cw/ccw control, 0 to 5 V, 0 to 10 V, and 4to 20mA speed control
Power Supply： AC 220V±10%,50Hz/60Hz（optional）
AC 110V±10%,50Hz/60Hz（optional）
Power Consumption:： ＜50W
Operating condition: Temperature 0 to 40 °C, Relative humidity < 80%
IP rating: IP31
