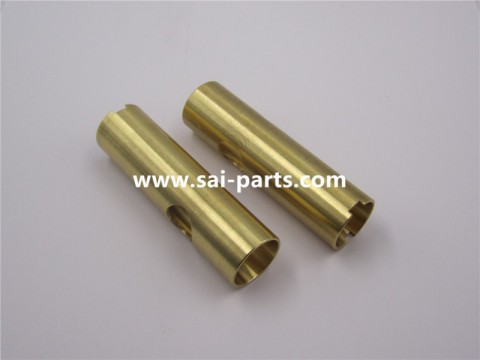

inner inlay tube
manufactured by CNC turning & milling
2 though holes milled on the opposite sides
2 grooves milled on the opposite ends
size:
end outer diameter 19.20 mm,
end inner diameter 19.00 mm
height: 70 mm
side hole diameter 12.40 mm
2 grooves width: 3.3 mm, 5.3 mm
material: brass ISO CuZn40 ASTM C28000
Soochow Advance Industries Co., Ltd., China contract manufacturer, supplies custom specialty OEM machine parts and components, industrial fasteners, screws, bolts, nuts, coupling, pipe nipples, fittings, inserts, shafts, threaded rods, electronic hardware etc. Our manufacturing capabilities include precision machining, together with secondary manufacturing machines which perform milling, drilling, tapping, external broaching, threading, thread rolling, slotting, reaming, knurling, grinding, burnishing, shaving, trimming, laser marking etc.
Welcome to our website www.sai-parts.com for more information.
