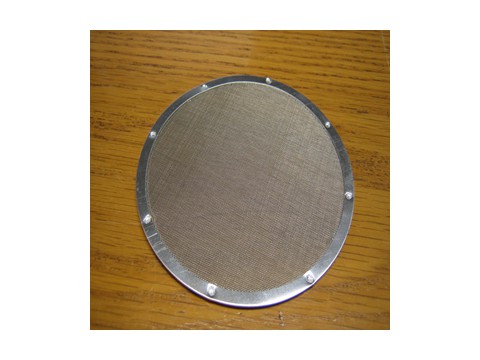

Stainless Steel Filter Discs

Stainless Steel Filter Disc with Corrosion Resistance

Stainless steel filter disc, also called stainless steel wire mesh filter disc, is one type of the metal filter discs. We classify the manufacture process into three steps. First, we choose high quality stainless steel wire. Second, stainless steel wire would be weaved or punched. Then, according to customers' special requirements, we will select different material to wrap the edge. What's more, in the manufacture process, we can provide stainless steel filter discs with different sizes, different shapes and different weaving methods. All can be produced according to your specific requirements. Stainless steel filter disc features excellent acid and alkali resistance and can be used in very harsh conditions, especially suitable for sour gas filtration.



Specifications

1. Wire materials: SUS302, SUS304, SUS304L, SUS310S, SUS316, SUS316L, SUS321, etc.
2. Wire diameters: 0.01 mm - 5 mm.
3. Disc diameters: 5 mm - 600 mm (custom size: 8 mm - 3800 mm).
4. Weaving methods: plain weave, twill weave, dutch weave, etc.
5. Layer: single layer or multiple layers.
6. Filter disc shapes: round, rectangular, square, crescent and semicircle, etc.
7. Marginal materials: copper, aluminum, stainless steel, rubber, etc.
8. Filtration precision: 0.2 µm - 100 µm.
