1. Description

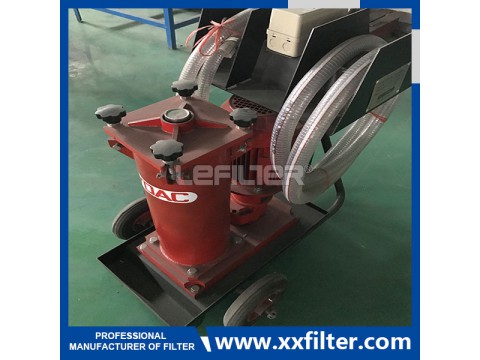

The filtration unit OF 5 mobile is designed to fill hydraulic tanks (whilst filtering the fluid). It can also filter offline and pump hydraulic and lubrication
oils out of hydraulic tanks (without filtration).The mobile filtration unit can
also be equipped with a
ContaminationSensor CS 1000 as an option for
simultaneous monitoring of
solid particle contamination in the oil.
2. Applications
1. Hydraulic and lubrication
oil systems in a variety of industries
3.Advantages
1. Convenient offline filtration
2. Simple to operate
3. Greater system availability
4.Reduction of Life Cycle Cost LCC
5. Filtration and fluid monitoring (optional) in one device
4. Technical specifications
|
Max. flow rate |
30 l/min / 40 l/min |
|
Pump type |
Vane type |
|
Operating pressure |
4.5 bar |
|
Permitted suction
pressure at suction |
-0.4 bar to +0.6 bar |
|
Viscosity range |
OF 5 F / OF 5 L
15 ... 800 mm²/s |
|
Permitted operating fluid |
Mineral oil (others on request) |
|
Fluid temperature |
-10 ... 80°C |
|
Ambient temperature |
-20 ... 40 °C |
|
Seals, gaskets |
NBR (Option: FKM)(FPM, Viton®) |
|
Protection class |
IP 54 |
|
Power cable, length |
10 m |
|
Length of hoses |
3 m |
|
Hoses |
Suction hose NW 30
with lance |
|
Weight |
OF 5 F / OF 5 L ≈ 75 kg |
5. Reference model:
OF5L10P3M2B03E
OF5L10P3M2B05E
OF5L10P3M2B10E
OF5L10P3M2B20E
OF5L10P3M2B40E
OF5L10P6N2B03E
OF5L10P6N2B05E
OF5L10P6N2B10E
OF5L10P6N2B20E
OF5L10P6N2B40E
