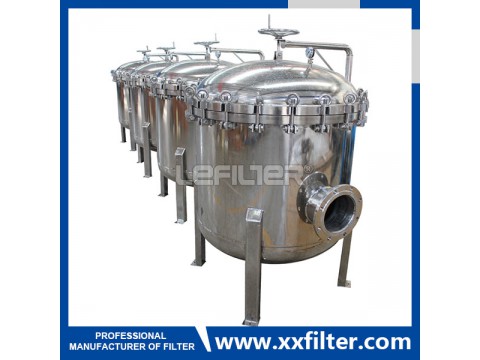

Click image to view original image
Technical parameters:
1. Housing material: stainless steel 304，316L
2. Diameter of the housing: Φ167 ~Φ1000mm
3. Height of the housing: 410 ~ 1850mm
4. Reference flow rate : 10T/h ~ 360T/h
5. Working pressure: 1.0Mpa
6. Quantity of the bags: 1 ~ 10 branch
7. Interface modes: clamp type, flange type (common flange, a movable flange)
Clamp bag filter specifications parameter:
|
specifications |
Bag type |
Bag specifications |
filter area |
Pipe Diameter |
maximum flow rate
|
|
Φ167x410 |
4# |
Φ102x410 |
0.13 |
25 |
10 |
|
Φ167x810 |
3# |
Φ102x810 |
0.26 |
25 |
20 |
|
Φ219x410 |
1# |
Φ180x410 |
0.23 |
40 |
15 |
|
Φ219x810 |
2# |
Φ180x810 |
0.46 |
40 |
30 |
Flange bag filter specifications parameter:
|
specifications |
Number of Bags |
Bag Specifications |
filter area |
maximum flow rate
|
|
Φ400x1300 |
2 |
Φ180x810 |
1.02 |
60 |
|
Φ500x1300 |
3 |
Φ180x810 |
1.38 |
90 |
|
Φ600x1500 |
4 |
Φ180x810 |
1.84 |
120 |
|
Φ650x1500 |
5 |
Φ180x810 |
2.3 |
150 |
|
Φ750x1500 |
7 |
Φ180x810 |
2.76 |
200 |
|
Φ750x1700 |
8 |
Φ180x810 |
4 |
240 |
|
Φ800x1750 |
9 |
Φ180x810 |
4.5 |
270 |
|
Φ950x1800 |
10 |
Φ180x810 |
5 |
300 |
|
Φ1000x1850 |
12 |
Φ180x810 |
6 |
360 |
