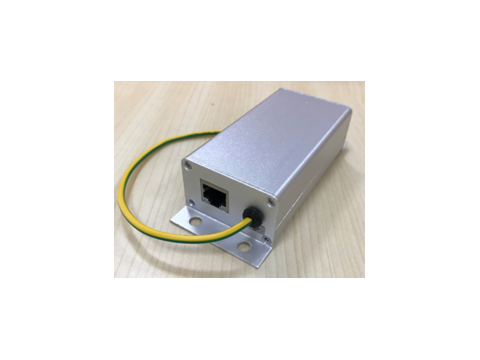

LAYX POE surge protective device product series are suitable to wireless bridge for protection the ports from surge and over voltage induced by lightning stroke or by internal systems.
based on multi-stage combined protection circuits.
- This product series can operate with low clamping voltage,
- Fast response, portable structure,
- Easy for installation and maintenance.
Item
Parameter
Protect mode
Line-Line, Line- PE
Operating voltage Uo
48V DC
Max. continuous operating voltage Uc
3.3V(signal)
75V (power)
Impulse durability Uc(max):L-PE
6KV(10/700us)
Voltage protection class Up:L-PE
≤300V(@6KV 10/700us)
Response time tA
1ns
Max. data rate
1000Mbps
Connector type
RJ45
Standard distribution lines
1/2,3/6 ,4/5,7/8
Protection class
IP20
