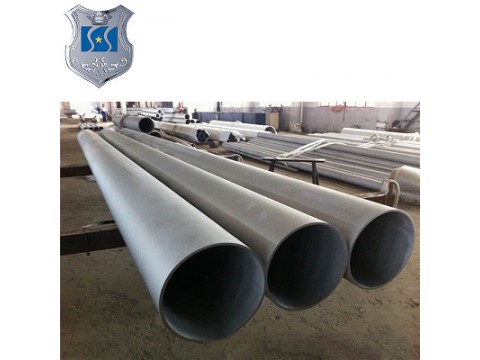

LSAW Steel Pipe

Usage: Used for low pressure liquid delivery, such as water, gas, and oil.

Process:

LSAW (Longitudinal Submerge-arc Welded) UO(UOE)、RB(RBE)、JCO(JCOE)

DSAW (Double Submerged arc welded)

Quality Standard:

LSAW, DSAW:

GB/T3091 Welded steel pipe for low pressure liquid delivery

GB/T9711 Petroleum and natural gas industries--Steel pipe for pipelines

IS: 3589 Steel tubes for water and sewage

IS : 1978-1982:Steel tubes for use in transportation of oil; gas & Petroleum products?

BS: 1387 Steel Tubes for use for Water, Gas, Air and Steam

ASTM A53 Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless

DIN 2458 WELDED STEEL PIPES AND TUBES

EN10217 Welded steel tubes for pressure purposes. Technical delivery conditions. Non-alloy steel tubes with specified room temperature properties

API 5L LSAW Line Pipe

SAW SSAW:

SY/T5037 Spiral submerged arc-welded steel pipe for pipelines for low pressure field fluid service

SY/T 5040 Spiral submerged arc-welded steel pipe piles

CJ/T 3022 Spiral submerged-arc welded steel pipe for municipal heat supply

IS : 1978 Steel tubes for use in transportation of oil; gas & Petroleum products?

ASTM A252 WELDEDAND SEAMLESS STEEL PIPE PILES

Coating Standard:

ANSI/AWWA C104/A21.4 American National Standard for Cement-Mortar Lining for Ductile-Iron Pipe and Fittings for Water

ISO 21809 Petroleum and natural gas industries -- External coatings for buried or submerged pipelines used in pipeline transportation systems

DIN 30670 Polyethylen coatings of steel pipes and fittings

Steel Grade:

BS:1387, EN10217:S185, S235,S235JR, S235 G2H, S275, S275JR, S355JRH, S355J2H, St12, St13, St14, St33, St37, St44, ST52

ASTM A 53: Gr. A, Gr B, Gr C, Gr.D

API 5L: A, B, X42, X46, X52, X56, X60, X65 X70

GB/T9711: L175, L210, L245, L290, L320, L360, L290, L320, L360, L390, L415, L450, L485, L555

GB/T3091, SY/T5037, SY/T 5040,CJ/T 3022:Q195, Q215, Q235, Q275, Q295, Q345, 08F, 08, 08AL, 08F, 10F, 10, HG5, DF08 SPHC, M8

Size:

LSAW, DSAW:

Outer Diameter: 219mm-1820mm

Wall Thickness: 5.0mm-50mm

Length: 6mtr-18mtr

End:square ends (straight cut, saw cut, and torch cut). or beveled for welding, beveled,

Surface: Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings (Coal Tar Epoxy,? Fusion Bond Epoxy, 3-layers PE)

Packing:Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.

Test:Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield

strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.

Mill Test Certificate:EN 10204/3.1B

Third party inspection:SGS, BV, Lloyds etc.
