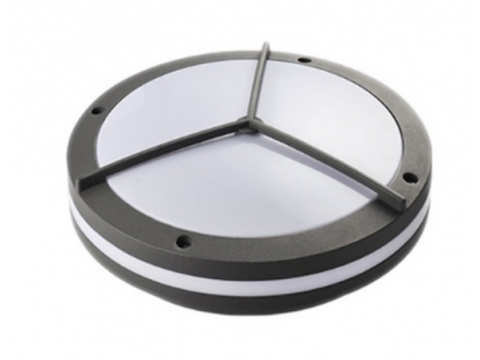

20W Round LED bulkhead light 300*300*90mm Black housing Surface mounted wall light IP65
The 20W Round Led Bulkhead light is the main product produced by superolux , it's designed with Aluminum
housing ,PC cover ,with size 300*300*90mm ,1600Lumen . is widely used for various applications both indoor
and outdoor . the Round LED bulkhead light is designed with IP65 IK10 rate ,suitable for conditions with moisture
dust wet areas
Paramets for 20W Round LED bulkhead light
| Model | SP-MLG020W | ||
| Input Voltage | AC85-265VAC 50/60Hz | ||
| Dimension | 280*180*83mm | ||
| Lighting Source | 3528SMD | ||
| Power Consumption | 20W | ||
| Color Temperature | WW(2800~3000K) | NW(4000~4500K) | CW(6000~6500K) |
| Luminosity | ≥1500lm | ≥1650lm | >1600lm |
| CRI(Ra) | >80 | ||
| Beam Angle | 120 | ||
| Work Temperature | -25℃～+45℃ | ||
| Material | Die Cast Aluminium +PC | ||
| GW | 1.2 | ||
| NW | 1.0KG | ||
| Power Factor | >0/9 | ||
| Lifespan (LED) | ≥50,000hrs (950% Lumen Maintenance) | ||
| IP Rating | IP65 | ||
| Lumen Attenuation | <5% @ 5,000hrs | ||
| IK rate |
IK09 |
||
20W LED Round Bulkhead light features
1. Die-casting Aluminium body
2. Powder coating or oil paiting with colour choosed by clients
3. Milky PC cover ,rubber ring for connection
4. Light sources : LED smd Board or Energy saving lamp with E27 socket
5. Voltage:85-285VAC
7. IP65 rating , suitable for indoor and outdoor applications
