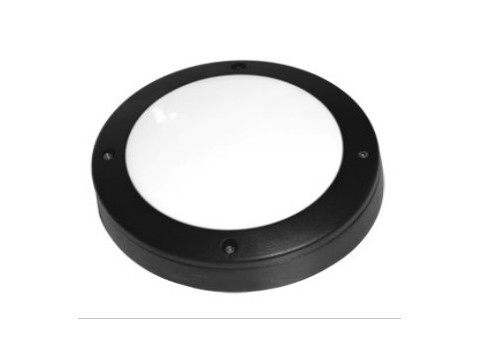

The surface mounted led ceiling light is a series with IP65 waterproofing designing , the series is the
main production for superolux lighting , range from 10w-30w ,with various fininshing colour ,white
grey ,black, Die cast Aluminium housing ,suitable for both indoor and outdoor lighting , the
outdoor ceiling light is an ideal choice for villa ,bathroom ,spa ,car park ,etc ...
4.
Electricity Parameters:
| NO | Items | Parameters |
| 1 | Input Voltage | 90-265VAC 47-63HZ |
| 2 | Input Current | 0.058A(230V) |
| 3 | Power | 10W |
| 4 | Output Voltage | 30V |
| 5 | Output Current | 0.34A |
| 6 | Power Factor | >0.9 |
| 7 | Luminous Efficiency | ≥85% |
4.
2 Optical Parameters:
| NO | Items | Parameters |
| 1 | Beam angel (H,V) | 115° |
| 2 | Peak Light Intensity | 247cd |
| 3 | Luminous Flux | 800Lm |
| 4 | Color Rendering Index | ≥70Ra |
| 5 | Color Temperature | 2800-3200k /4000-4500k/5500-6000k |
4
Physical Parameters:
| NO | Items | Parameters |
| 1 | Working temperature | -40°— 60° |
| 2 | IP range | IP65 |
| 3 | N.W | 330g |
| 4 | Length | 145mm |
| 5 | Width | 145mm |
| 6 | Height | 65mm |
