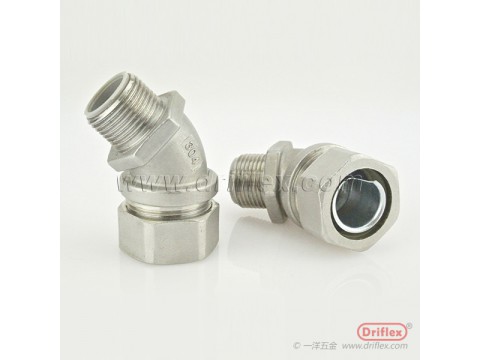

Structure:
Connector body with hexagonal wrench surface, thread ISO metric in accordance with EN60423 or thread NPT in accordance with ANS/ASME B1.20.1-1983, Comply with stands AS/NZS 2053. 8, hexagonal pressure nut, sealing ring and ferrule.
Special Applications:
According to customer's samples and specifications, we can manufacture special fittings for suit any type of flexible conduit applications.
Specifications:
|
Part No |
ISO Thread (mm) |
Part No |
NPT Thread (inches) |
I.D. (mm) |
O.D (mm) |
Box (pcs) |
|
LTCM-S309 |
16 |
LTC-S309 |
5/16" |
11.0 |
15.7 |
25 |
|
LTCM-S30 |
16/20 |
LTC-S30 |
3/8" |
11.0 |
19.7 |
25 |
|
LTCM-S31 |
20 |
LTC-S31 |
1/2" |
14.5 |
19.7 |
25 |
|
LTCM-S32 |
25 |
LTC-S32 |
3/4" |
19.5 |
24.7 |
25 |
|
LTCM-S33 |
32 |
LTC-S33 |
1" |
25.0 |
31.7 |
15 |
|
LTCM-S34 |
40 |
LTC-S34 |
1-1/4" |
33.5 |
39.7 |
6 |
|
LTCM-S35 |
50 |
LTC-S35 |
1-1/2" |
38.0 |
49.7 |
6 |
|
LTCM-S36 |
63 |
LTC-S36 |
2" |
49.5 |
62.7 |
4 |
Suitable flexible conduits:
•VJ type of vacuum jacketed flexible conduit
•LT type of liquid-tight flexible conduit
•FM type of flexible metallic conduit
