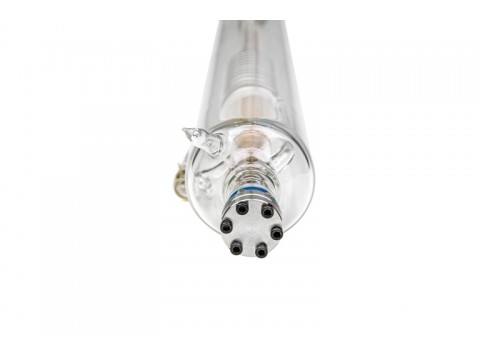

110W/138W co2 laser tube SLC110 Laser tube only

 Laser specifications                   Laser tube only
Model                                 SLC110
Output Power( Rated Power/Max Power)(W)    110W/138W
"N" Type                      Waist located the output coupler
Beam Waist(2W.)(mm)                      5.8
Beam Divergence(mrad full angle)           2.6
B" Type                     Waist located outside the output coupler
Beam Waist(2W.)(mm)                     4.8
Beam Divergence(mrad full angle)           3.1
Pointing Stability(mrad)                  less than 0.2
Typical Power Stablilty(±% after warm up)     4
Polarisation              Random polarization or linear polarization
Maximum Strike Voltage(KV)                40
Rated Operating Current-Absolute max.(mA)    32 go to35
Dynamic Range                   Negative high voltage
Electrical Requirements                  8compare to1
Single Phase 110V-60Hz(A)                6
230V-50Hz(A)                          3
Cooling (l/min)(de-ionized water)     3.6
Water cooling (W)                      650
Dia(mm)                              80
L(mm)                              1470
W(mm)
H(mm)
Weight(kg)                           5
Wrranty                             12Months
Prics($)                             6110
