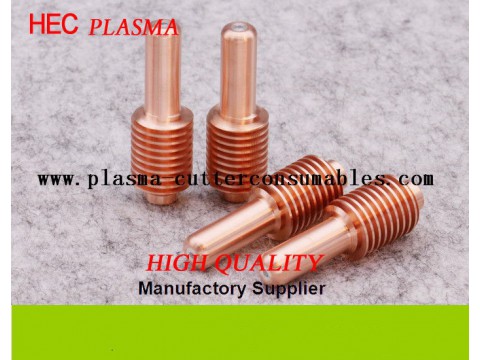

Hypertehr Electrode 220777 Plasma Consumables For Hypertherm PowerMax105 plasma Machine
We can offer you all plasma consumables for hyptertherm, Kjellberg, Esab, Koike, Komatsu, Thermadyne, such as: electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.
We are specialized in the production of plasma cutting machine torch consumables manufacturer, we are engaged in the industry for ten years.
Our products are processed using CNC machines, we have fifteen sets of high-precision testing equipment and Eighty experienced skilled workers.
In recent years, we have been sold in lots of countries and regions in Europe and Asia and gained good reputation widely with excellent quality . In order to meet customers’ requirements and improve product quality, our company has already realized mechanical processing numerical control automatization production, and been committed to manufacturing products with best quality.
| Machine | HEC NO. | Ref NO. | Description |
|
PowerMAX 45 PowerMAX 65 PowerMAX 85 PowerMAX 105
|
H71857 | 220857 | Swirl Ring 45/65/85Amp |
| H71994 | 220994 | Swirl Ring 45/65/85/105Amp | |
| H71947 | 220947 | Swirl Ring FineCut | |
| H01842 | 220842 | Electrode 45/65/85Amp | |
| H11941 | 220941 | Nozzle 45Amp | |
| H11819 | 220819 | Nozzle 65Amp | |
| H11816 | 220816 | Nozzle 85Amp | |
| H11930 | 220930 | Nozzle FineCut | |
| H11797 | 220797 | Nozzle 65A/85A gouging | |
| H11990 | 220990 | Nozzle 105Amp | |
| H11991 | 220991 | Nozzle 105A gouging | |
| H41854 | 220854 | Retaining Cap 45/65/85Amp | |
| H41953 | 220953 | Retaining Cap 45/65/85A mechanized, ohmic | |
| H41817 | 220817 | Shield 45/65/85Amp mechanized | |
| H41818 | 220818 | Shield 45/65/85A drag-cutting | |
| H41948 | 220948 | Shield FineCut, mechanized, ohmic | |
| H41798 | 220798 | Shieldg 65/85A gouging | |
| H41931 | 220931 | Deflector FineCut, handheld | |
| H41993 | 220993 | Shield 105Amp mechanized | |
| H41798 | 220798 | Shield 105A drag-cutting | |
| H91955 | 220955 | Deflector 45/65/85A mechanized,unshielded |
Technical Support:
Plasma cutting machine matters needing attention
cutting speed: best cutting speed range according to equipment illustrate selected or test to determine, due to the thickness of the material, different materials, high melting point, thermal conductivity and melting the surface tension and other factors, the cutting speed is also a corresponding change. The main performance: 1, cutting speed can be improved to improve the quality of the cut, that is slightly narrow incision, incision surface more smooth, and can reduce the deformation. 2, the cutting speed is too fast that cutting line energy lower than the required value, cut seam in the jet can't quickly melted cutting melt immediately blew and the formation of larger drag, accompanied by incision slag hanging, the surface quality of the incision down. 3, when the cutting speed is too low, because the cut is plasma arc anode, in order to maintain the stability of the arc's, anode spot or anode region must from recent arc cutting seam found near the conduction current place, at the same time will pass more heat to a radial jet, so make the incision became wide, on both sides of the notch of molten material in the bottom flange aggregation and coagulation, form is not easy to clean the slag hanging, and incision margin due to excessive heating and melting and the formation of fillet. 4, when the speed is very low, because the cut is too wide, the arc will even put out. It can be seen that good cutting quality and cutting speed can not be separated.
