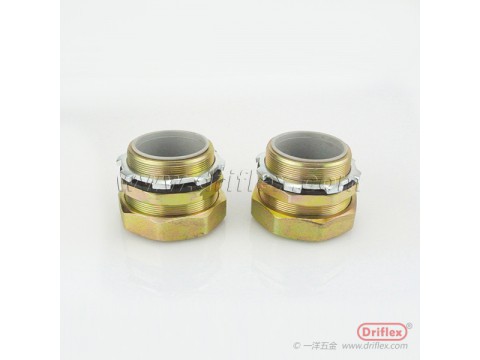

Click image to view original image
Features:
•Simple, one piece installation provides a quick and reliable liquid-tight seal
•IP rating from IP40 to IP66/67 in combination with the corresponding flexible conduits
•High mechanical strength
•Highly liquid-tight and dustproof
•Vibration and tensionproof
•Inherently low fire hazard
•Covering of the conduit ends
•Available in straight, 45o and 90o bodies
•Available in ISO Metric and NPT threads
Special Applications:
According to customer's samples and specifications, we can manufacture special fittings for suit any type of flexible conduit applications.
Specifications:
|
Part No |
ISO Thread (mm) |
Part No |
NPT Thread (inches) |
I.D. (mm) |
O.D (mm) |
Box (pcs) |
|
LTCM-09 |
16 |
LTC-09 |
5/16" |
11.0 |
15.7 |
25 |
|
LTCM-10 |
16/20 |
LTC-10 |
3/8" |
11.0 |
19.7 |
25 |
|
LTCM-11 |
20 |
LTC-11 |
1/2" |
14.5 |
19.7 |
25 |
|
LTCM-12 |
25 |
LTC-12 |
3/4" |
19.5 |
24.7 |
25 |
|
LTCM-13 |
32 |
LTC-13 |
1" |
25.0 |
31.7 |
15 |
|
LTCM-14 |
40 |
LTC-14 |
1-1/4" |
33.5 |
39.7 |
6 |
|
LTCM-15 |
50 |
LTC-15 |
1-1/2" |
38.0 |
49.7 |
6 |
|
LTCM-16 |
63 |
LTC-16 |
2" |
49.5 |
62.7 |
4 |
