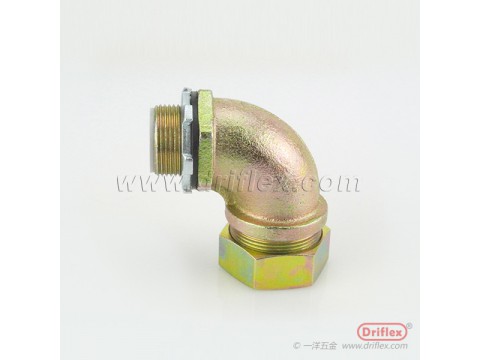

Click image to view original image
Features:
•Simple, one piece installation provides a quick and reliable liquid-tight seal
•IP rating from IP40 to IP66/67/68 in combination with the corresponding flexible conduits
•High mechanical strength
•Highly liquid-tight and dustproof
•Vibration and tensionproof
•Inherently low fire hazard
•Covering of the conduit ends
•Temperature range from -40oC to +150oC
•Available in straight, 45o and 90o bodies
•Available in ISO Metric and NPT 、PF、PG，BSP etc. threads
Special Applications:
According to customer's samples and specifications, we can manufacture special fittings for suit any type of flexible conduit applications.
Specifications:
|
Part No |
ISO Thread (mm) |
Part No |
NPT Thread (inches) |
I.D. (mm) |
O.D (mm) |
Box (pcs) |
|
LTCM-209 |
16 |
LTC-209 |
5/16" |
11.0 |
15.7 |
25 |
|
LTCM-20 |
16/20 |
LTC-20 |
3/8" |
11.0 |
19.7 |
25 |
|
LTCM-21 |
20 |
LTC-21 |
1/2" |
14.5 |
19.7 |
25 |
|
LTCM-22 |
25 |
LTC-22 |
3/4" |
19.5 |
24.7 |
25 |
|
LTCM-23 |
32 |
LTC-23 |
1" |
25.0 |
31.7 |
15 |
|
LTCM-24 |
40 |
LTC-24 |
1-1/4" |
33.5 |
39.7 |
6 |
|
LTCM-25 |
50 |
LTC-25 |
1-1/2" |
38.0 |
49.7 |
6 |
|
LTCM-26 |
63 |
LTC-26 |
2" |
49.5 |
62.7 |
4 |
