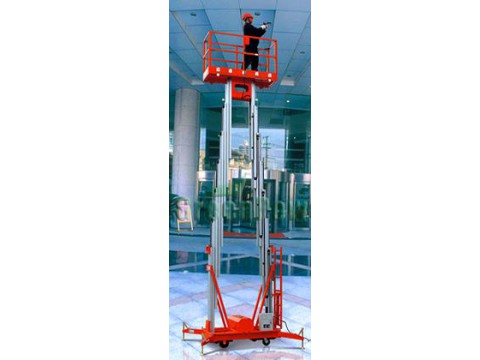

Aeriral Working Platforms

Qingdao Greenpower Machinery Co.,Ltd.
Tel: +86-532-80762882
http://www.china-greenpower.com/


Aerial work platform,Aerial working platform,Lifting platform,Electric working platform,Aluminum aerial work platform,Aerial working platform truck

Lift Rated Capacity: 200-450KG
Max. Platform Height: 8000-9500mm
Max. Machine Height: 9100-10600mm
Min. Platform Height: 1300mm
Ground Clearance 104mm
Platform Extend Capacity kg:100-112
Platform Size mm: 2506*1120*1100
Platform Extend Length mm: 1270
Max. Drive Speed
(Platform Elevated)km/h:4-5
(Platform Elevated)km/h:0.6-1
Min. Turning Radius mm: 2700
Driving Motor v/kw: 2*24/1.5-2.2
Lifting Motor v/kw: 24/3
Turning Motor v/kw: 24/2
Battery v/Ah: 4*6/210
Charger v/A:24/20-25
Overall Length mm: 2510
Overall Width mm: 1170
Overall Height mm: 2400
Overall Net Weight kg:2200-2280
