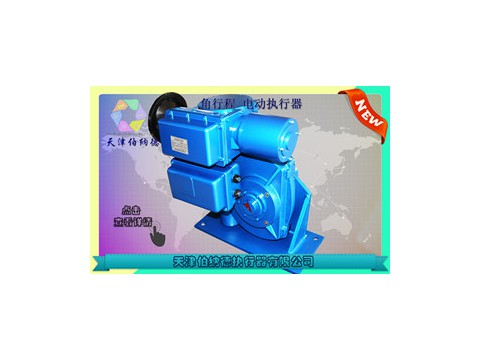

Model Number: B+RS600/K65H
Intelligent Type
Output Torrue: 6000Nm
Input & feedback signal: 4~20mA
Power:220V/50Hz/1Ph,0.4KW
Travel times:65s
Connection:Foot-plate mounted
Main Technical Specifications
The following specifications are principally for proportional regulation type; items 1,2,3,4, 5 and 6 are not applicable for remote control and switch type.
1) Input signal: 4-20mA DC
2) Input channel resistance: 250 Ω
3) Number of input channel: 1
4) Basic error: 1%, 2.5%
5) Backlash 1.5%
6) Dead zone: 0.5-3% continuously adjustable (can be adjusted according to system requirement)
7) Dumping character: Free of swing
8) Voltage of power supply Three-phase 380V-50Hz Single-phase 220-50Hz
9) Operation environment: Temperature: integrated type:-10-+55°C discrete type:-25-+70°C Humidity:below85%, free of corrosive atmosphere in the surrounding
10) Protection class: In conformity with IEC145 IP65
(i.e. for indoors or outdoors under the rain canopy, with an exception that discrete type for indoor installation.)
11) Protection of signal interruption:
At the option of fully-open, fully-closed or remain original position, which can be specified at time of ordering, it has been set to remaining original position mode when delivered.
