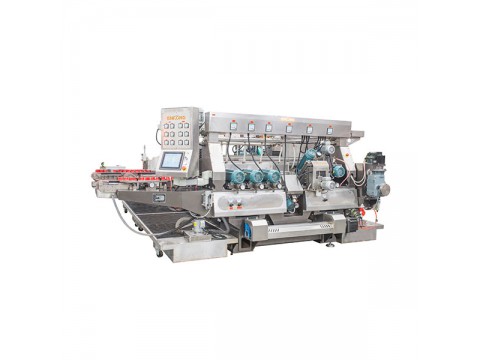

Click image to view original image
General description
SM 20 adopted auto-polish feeding senor, optimizing polish level
Suitable for high polish demanded products, such as household appliances and furniture.
Machine body and components especial stable design for low vibration processing and ensure tolerance of the diagonal within 0.1 in 1m^2.
Technical Date
- Number of Spindles: 20 (optional: 22 spindles with Low E deletion device, Extra-polish, Servo tracking Safety Corner Cutting)
- Max. glass dimension: Up to 4200
- Min. glass size: 300x300 (optional: 250x250)
- Glass thickness: 3~25 mm
- Working Speed: 0.5-12 8m/mins
- Width adjustment Speed: 2m/mins (optional:8m/mins)
- Max. edge grinding: 1~3 mm
- Tolerance of the diagonal(1000x1000): ±0.5mm
- Tolerance on the parallelism(mm): ±0.3mm
- Total power: 68 KW
