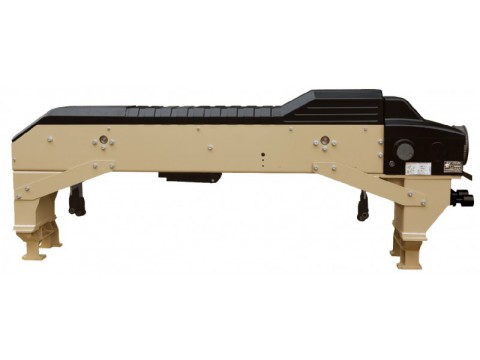

Top-mounted positve cam shedding machine for high speed and heavy duty water-jet loom

Top-mounted positive shedding device NP4421 is characterized by more lifting units, large shedding amount, frame box of integral structure, strong rigidity, wide weaving patterns. It’s especially suitable for double-warp looms that produce wide and heavy home textiles

Technical Parameters

Reed Space:                               1900mm~3600mm

Max. RPM:                                 600rpm (4/1 weave, 1900 mm）

Weft pikcs:              12 picks

Pitch:                                           12mm

Max. Lifting Units:                   16 pcs

Heddle:                                       330mm

Shedding Amount:                   56mm~130mm
