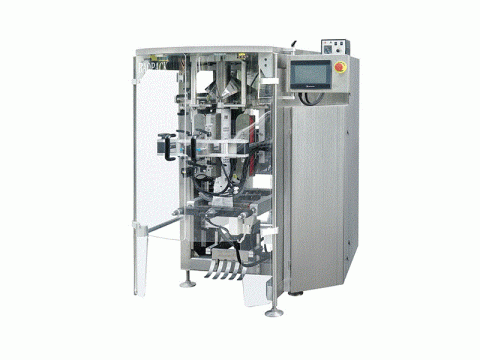

Click image to view original image
Technical adavantage
The machine is controlled by three servor motors, with continuous pulling film system and of maximum speed which can catch 150 bags/min.
New exterior appearance and combined type of frame are made the machine become more precision on the whole.
The electric box which can be moved combined to the whole machine handily as well as the touch screen does.
The Servo Pulling Film System comprises the vacuum pump and planetary gear reductor. It works stably and has long performanc lifte.
Over 90% spare parts are stainless material, Also electrical aparatus elements are world famous brands.
Automatic correction system makes tracking and positioning more accurately
It is easy to adjust the novel vertical sealing structure and deveeloped horiaontal sealing structure because of adopting gravity balance system
Teh film pulling frame is simple design, easy to adjust the eye mark and install the film
It is vonvenient for user operate the machine by the separate film installation system of the film pulling frame
Optional Device
Filling nitrogen device, punching jaws, chain bag making device, gusseted device
Air inflation device, euroslot device, sstrip bag device, gusset device, ect.
|
Item |
Contents |
|
Model |
VG42A |
|
Max packing speed |
150bags/min |
|
Bag size |
(L)50-300 (W) 90-200mm |
|
Type of bag making |
Pillow bag/gusset bag |
|
Film width range |
120-420mm |
|
Film thickness |
0.04-0.09m |
|
Packing film material |
BOPP/CPP, BOPP/VMCP, BOPP/PE, PET/VMPET/PE, PET/PE, ect |
|
Air consumption |
0.8Mps 0.3m³/min |
|
Voltage |
5.6KW 380V 50/60Hz |
|
Dimension |
(L)1900x(W)1180x(H)1550 (L)1950x(W)1180x(H)1650 |
|
Net Weight |
700KG |
