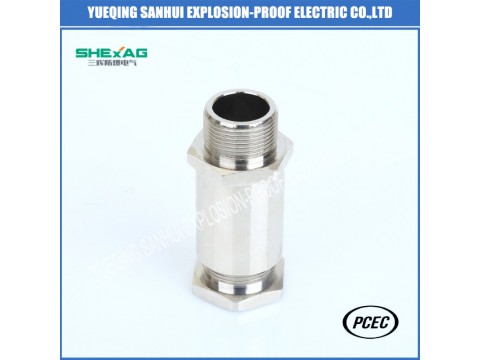

SHBDM-10 SINGLE COMPRESSION EXPLOSION-PROOF CABLE WIRING/STEEL PIPE WIRING
Product Features
- Made of high quality brass or stainless steel,using mechanical cable clamping device
- Surface treatment;nickel planted.passivation
- Sealing materials:NBR
- Protection grade:IP66
- Ambient temperature: Static from -40ºC to 100ºC,short up to 120º, Dynamic from -20ºC to 80ºC,short up to 100ºC.
Outline dimension
| Specifications |
A AG |
Cable range |
C(mm) |
Ex-mark | Protection Level | ||
| A type | B type | ||||||
| SHBDM-10G1/2 | M20 | G1/2 | 7-10 | 62 | 63 |
Exd IIC Gb |
IP66 |
| SHBDM-10G3/4 | M25 | G3/4 | 9-14 | 62 | 76 | ||
| SHBDM-10G1 | M32 | G1 | 12-18 | 67 | 79 | ||
| SHBDM-10G1 1/4 | M40 | G1 1/4 | 15-26 | 77 | 97 | ||
| SHBDM-10G1 1/2 | M50 | G1-1/2 | 18-30 | 79 | 99 | ||
| SHBDM-10G2 | M63 | G2 | 25-42 | 81 | 100 | ||
| SHBDM-10G2 1/2 | M75 | G2 1/2 | 29-55 | 100 | 135 | ||
| SHBDM-10G3 | M90 | G3 | 29-55 | 100 | 150 | ||
| SHBDM-10G4 | M100 | G4 | 41-80 | 100 | 190 | ||
Note: NPT thread can also be provided.
Customization is accept.
