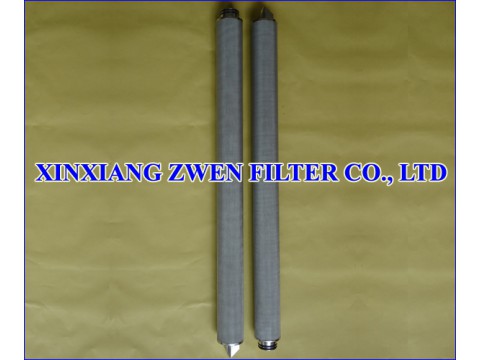

Cylindrical Metal Filter Element

Cylindrical metal Filter Element Feature

1. Cylindrical metal filter element is surface filtration

2. Cylindrical metal filter element is good for backwash because the pore passage of zwen sintered wire mesh aperture is very smooth

3. Cylindrical metal filter element has uniform pore size distribution

4. Wire mesh will not shed in filtration process

5. High compression strength

6. High mechanical strength

7. High rigidity

8. High abrasion resistance

9. Good durability against most liquids, gases and aggressive steam

10. High temperature resistance

11. High filter rating accuracy

12. High filter efficiency

13. Good corrosion resistance

14. Washable and Cleanable

15. Reusable

16. Long service life



Cylindrical metal Filter Element Technical Parameter

Raw Material: SS 316L, SS 304

Filter Media: ZWEN Sintered Wire Mesh

Filter Rating: 0.5-300 Microns

Filter Efficiency: > 99.99 %

Operation Temperature: ≤ 816 ℃

Outside Diameter: 10 mm, 15 mm, 25 mm, 30 mm, 50 mm, 60 mm, 63.5 mm, 65 mm,100 mm,150 mm, 250 mm, 380 mm, 500 mm or others

Length: 40 mm, 90 mm, 127 mm, 254 mm, 508 mm, 762 mm, 1016 mm or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector:

1. DOE

2. 220

3. 222

4. 226

5. Thread (NPT,BSP,G,M,R)

6. Flange

7. Special customization



Application

Polyester filtration, polymer filtration, high viscosity filtration, fuels and lubricants filtration, oil filtration, steam filtration, high temperature gas filtration, high temperature liquid filtration, steam filtration, potable and process water filtration, beverages filtration, detergent filtration, solvents filtration, pharmaceutical industry, chemical industry, chemical fiber industry, food industry
