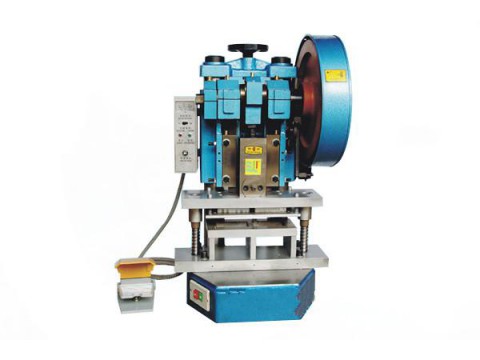

D5-2 two dies punching machine
Product introduction:
D5-2 two dies punching machine, which is a punched equipment for punching PVC cards, during the card making procedure, it can punch the laminated material into a card figure. The driving manner is that the electromotor drives the fly wheel ,through the function of clutch to punch the cards. Because the punching speed is very fast and the power is strongly, the edge of the cards is cut smoothly. The machine operates easily, high efficiency, which is designed for the pre-special consumer.
Technical specification
|
Type |
D5-2 Punching Machine |
|
Punching size |
85.7×54mm |
|
Inlet dimension |
210×297mm |
|
Punching thickness |
0.1-1.5mm |
|
Cutter Mold |
2pcs |
|
Efficiency |
2400sheets/h |
|
Power |
AC 220/110V 50/60Hz |
|
Machine size |
530×420×620mm |
|
Net weight |
180KG |
|
Packing meas |
580×460×720mm (wooden box) |
|
Gross weight |
197KG |
